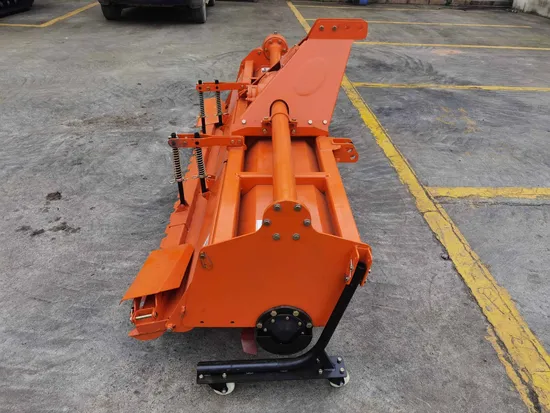

1gq230 Rotary Cultivator Tiller Implement
| US$800.00-1,200.00 | 3 Pieces (MOQ) |
Basic Info.
Model NO.
1GQ230
Power Source
Tractor
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Gear Drive
Certification
CE, CNAS
Color
Red&Yellow
Gross Weight
436
Transport Package
Naked
Specification
CE, SGS, ISO9001
Trademark
K-BOS
Origin
Deyang Sichuan
Production Capacity
3000PCS/Year
Product Description
| FEATURES |
This series heavy-duty rotary tiller is with side gear transmission, it can be mounted with various types tractor; The Rotary cultivator is a through shaft and without intermediately leaking plowing and grass hanging problem;
Big noodular cast iron gearbox is high strength, and with viewing oil hole for convenient maintenance;
S-streamline pallet is with high strength, to improve the surface flatness and better compaction after tillage; Spring rack system is anti-tipping, the effect is more fine soil particles and more plain.
It is good performance and suitable for dry land and paddy field.
| SPECIFICATIONS |
| ITEM | PARAMETER | |
| Product | 1GQ230 ROTARY CULTIVATOR | |
| Overall Dimension Length×Width×Heights ( mm ): | 920 × 3100 × 900 | |
| Weight (kg) | 436 | |
| Productivity of Operating Hours(hm²/h): | 0.19 min | |
| Power Source | Mounted with | Wheel Tractor, Crawler Tractor |
| Matched Power ( kw/hp ) | 50KW ~ 80KW | |
| Rear Mounted Implements Type | Three-point Linkage | |
| PTO Rotating Speed (r/min) | 720/540 | |
| Driving System | Structure | Frame based |
| Driving Type | Side Gear Driving | |
| Implement Type | Single Shaft | |
| Working Parameter | Working Width | 2300 |
| Working Depth | 80~150 | |
| Theoretical Operating Speed ( km/h ) | 0.27 ~ 0.69 | |
| Knife Axle Rotation Speed | 335/251 | |
| Maximum Turning Radius | 225 | |
| Type of Kinfe | IT225 | |
| Quantity of Knife | 64 | |
| MATCHED TRACTOR |
| PACKING AND SHIPPING |
| FIELD TESTING |
| PRODUCTION ENVIROMENT |
