High Quality Factory Price Turret Vertical Milling Machine

Product Description

High quality factory price Turret Vertical Milling Machine

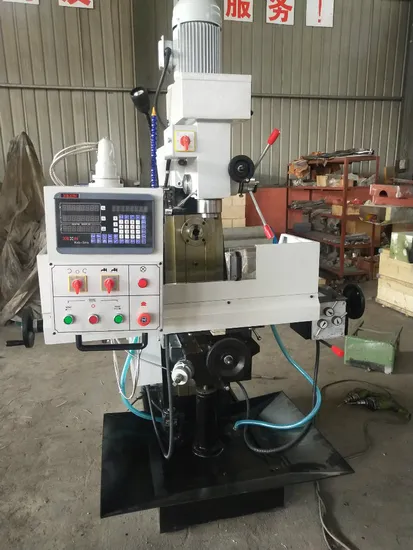

Product picture:
The main performance characteristics:
Performance:
1.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
2.Work Table Made by HT200-250 High Strength Cast Iron
3. With the horizontal milling function
4.Plastic Guide Way Increase The Precision And Service Life
5.Three Axis can Fix (X/Y/Z) Automatically Feed .
Standard Accessories:
1.milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4 3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27 6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.work lamp
9. cooling systerm 10.universal milling head XC63T4A
Optional Accessories:
1.X/Y power feed
2.Z axis lifting motor
3.three axis sino dro
4.QH200 flat vice
Product main technical specifications:

Model	3H
Table dimensions	254×1270mm
Table load	300kgs
X/Y/Z travel	890/384/407mm
Spindle vertical stroke	127mm
Spindle automatically feed	0.04/0.08/0.15mm/rev
Spindle taper	R8,NT30
Spindle motor	3HP
Spindle center to column surface	172-756mm
Spindle nose begins to table surface	0-458mm
Head rotation Angle	45°(F/B,L/R)
Stretched out arm stroke	458mm
Spindle rotating speed	80-5440,16Steps
Machine net weight	1250kgs

Model	4S
Table dimensions	254×1270mm
Table load	300kgs
X/Y/Z travel	890/385/407mm
Spindle vertical stroke	127mm
Spindle automatically feed	0.04/0.08/0.15mm/rev
Spindle taper	R8,NT30
Spindle motor	3HP
Spindle center to column surface	172-756mm
Spindle nose begins to table surface	0-458mm
Head rotation Angle	45°(F/B,L/R)
Stretched out arm stroke	458mm
Spindle rotating speed	80-5440,16Steps
Machine net weight	1250kgs

Model	5H
Table dimensions	254×1270mm
Table load	340kgs
X/Y/Z travel	890/407/407mm
Spindle vertical stroke	127mm
Spindle automatically feed	0.04/0.08/0.15mm/rev
Spindle taper	I.S.O 40
Spindle motor	5HP
Spindle center to column surface	172-756mm
Spindle nose begins to table surface	0-458mm
Head rotation Angle	45°(F/B,L/R)
Stretched out arm stroke	458mm
Spindle rotating speed	60-3600,10Steps
Machine net weight	1450kgs

Model	6H
Table dimensions	305×1370mm
Table load	340kgs
X/Y/Z travel	780/400/450mm
Spindle vertical stroke	125mm
Spindle automatically feed	0.04/0.08/0.15mm/rev
Spindle taper	I.S.O 40
Spindle motor	5HP
Spindle center to column surface	172-756mm
Spindle nose begins to table surface	10-540mm
Head rotation Angle	45°(L/R)
Stretched out arm stroke	500mm
Spindle rotating speed	60-3600,10Steps
Machine net weight	1800kgs

Brand Image:
As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers.
Details pictures :
