5SHY5055L0002 3BHE019719R0101 GVC736BE101

Product Details

Product Description

Product Description
Brand:ABB

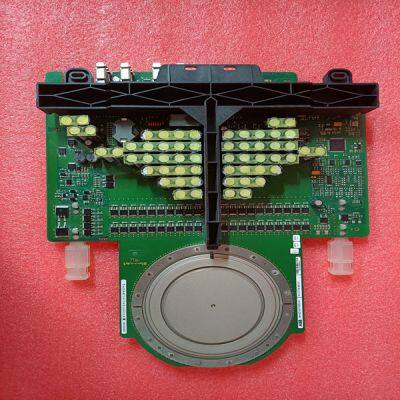

Type:5SHY5055L0002 3BHE019719R0101 GVC736BE101
Origin: the Swiss
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
The CI862 can be used in a redundant processor module configuration under the following conditions: a. If the CI862 is used with redundant PM866, only the TK850 CEX-bus extension cable shall be used for interconnection between the PM866 modules. The BC810 shall not be used. b. If the CI862 is used with other redundant processor modules (PM861A/PM864A/PM865), either BC810 or TK850 CEX-bus extension cable can be used for interconnection between the two processor modules. The CI862 is not supported with the PM891 processor module
Description CI862, Figure 78, connects a TRIO Field Bus to the controller AC 800M. The connection between CI862 and AC 800M is done via the CEX-Bus. A single CI862 can connect 30 blocks to a single TRIO LAN. AC 800M can have up to four single TRIO LANs. The maximum I/O with TRIO is 1000 I/O points.
TRIO blocks, Figure 79, are self-contained, configurable I/O blocks used to interface field devices to the CI862 communications bus. These blocks can be individually installed on machines, in junction boxes, or grouped in racks or panels. A TRIO block is made of cast aluminum, and weighs approximately 1.8 kgs (4 pounds). It measures approximately 22.5 x 10 x 7.5 cm (9 x 4 x 3 inches). Each block has its own communications capability and microprocessor, and provides from 6 to 32 circuits for connecting input and output devices. You can place blocks on the bus in any combination or sequence. You can use a mix of blocks on the same bus. Various types of blocks are available as listed in Table 94.Functional Block Diagram A complete CI862K01 unit consists of a TP862 baseplate, a CI862 communication interface board, and their mechanics, Figure 80. All electronic devices and all functions are located on the board which also includes the µGenie slave module. The baseplate and CI862 are connected via an 80-pin edge connector. Connections to the outside world are made on the baseplate.
