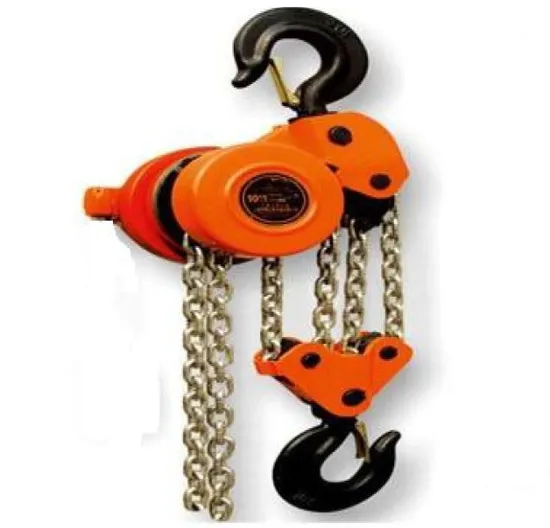

Simple Electric Hoist for Tank or Silo Lifting Tank Lifting Hoist Electric Hoist with Chain
Basic Info.
Model NO.
DHP-10
Application
Tank Lifting Machine
Type
Electric Hoist
Sling Type
Chain
Lift Speed
2~8m/min
Maximum Lifting Height
4~8m
Chain Falls
2
Certification
CE, ISO9001:2000
Condition
New
Color
Orange
Product Name
Electric Hoist
Rated Lifting Capacity
10t
Min Height
4m
Motor Power
500W
Customized Support
OEM, ODM
Lifting Speed
0.09min/Meter
Transport Package
Export Package
Specification
Customized
Trademark
WINCOO
Origin
Jiangsu, China
Product Description
Low Speed Electric Chain HoistProduct Overview
Large petrochemical storage tanks are usually constructed by lifting and flipping. The key to the inversion process is the lifting of the tank body, and there are many types of specific processes and supporting equipment. This paper mainly introduces the use of electric hoist group lifting inversion method in the manufacture of large storage tanks, using a new type of electric hoist as lifting equipment, and adding a fine-tuning circuit in the control system. The system has the advantages of smooth lifting, good synchronization, fast construction speed, low equipment cost, high efficiency, good safety self-locking function, easy installation quality control and so on. In the construction of large storage tank, this construction method has high popularization and application value.
FEATURES AT A GLANCE
Tank Lifting
PRODUCT SPECIFICATIONS
| Rated lifting capacity | 10 tons |
| Lifting speed | 0.09min/meter |
| Lifting height | 4m-8m |
| Motor model | YHPE-500 |
| Motor power | 500W |
| Motor speed | 1380R/Min |
| Voltage | 380V |
| Hoist model | HS10 |
| Total weight | 90-124KG |
PRODUCT CONFIGURATION
| 1 Motor | 8 Pin Bush | 15 Gear Piece | 22 Steel Bushing | 29 Down-hook Shelf |
| 2 Pin Gear | 9 Bearing Collar | 16 Spline Gear | 23 Guide Wheel | 30 Pulley |
| 3 Pin Wheel Housing | 10 Bearing Collar | 17 Macroaxis | 24 Bolt | 31 Pulley axle |
| 4 Cycloidal Gear | 11 Up-hook Beam | 18 Side Fascia | 25 Ring Shield | 32 Roller Pin |
| 5 Spacer Ring | 12 Lifting Hook | 19 Housing | 26 Lifting Chain | 33 Ring Shield |
| 6 Eccentric Bearing | 13 Lifting Chain Wheel | 20 Minor Axis | 27 Baffle | 34 Down-hook Beam |
| 7 Hinge Pin | 14 Bracing Stick | 21 Pin Roller | 28 Lifting Chain Plate | 35 Chain Stopper Plate |
