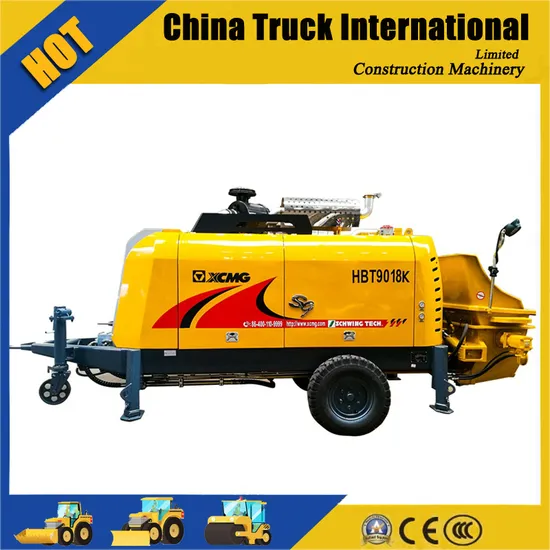

Powerful Diesel Concrete Pump Hbt9018K for Sale

Product Description

Powerful Diesel Concrete Pump hbt9018k for Sale
Features
1.By comprehensively incorporating switch-over control technology, the extraction and control of switch-over signal is totally done by hydraulic pressure, avoiding the unreliability brought by frequent electrical contact and harsh environment and reducing customers' later maintenance cost. .
2.By adopting exclusive invariable reversing buffering technology in the industry, the pump displacement keeps unchanged during pumping and reversing and the main system unloads in low pressure, which thoroughly avoid such problems as long reversing time, great reversing impact and low service life of pump caused by frequent change of displacement during traditional reversing.
3.The use of equivalent bending moment design ensures uniform force, reliable sealing and greatly prolongs the service life of bearing ring, spectacle wear plate and cutting ring. The feature of unilateral wear makes the theoretical service life of rock valve once higher than that of S-valve.
4.The machine adopts the controller with color display, which can dynamically display and record various working parameters in real-time; main control functions are all finished directly by the controller, which reduces the use level of relay; and meanwhile with it, many intelligent control functions can be realized.
5.Piston change is easy, convenient and time-saving. Traditional piston needs to be changed by repeatedly mounting and dismounting linkage and pumping at low speed.
6.The system ensures the cleanness of hydraulic oil and thus generates higher operational reliability of hydraulic system, pump and other hydraulic elements.
Specification

Description		Unit		Parameter value
Overall performance		Overall dimensions	mm	6482×2100×2886
		Total curb mass	kg	7400
		Concrete delivery value	m3/h	115/60
		Max. output pressure	Mpa	18
		Pulling speed	km/h	Three-level road 8km/h
				Road above two-level16km/h
		Delivery distance(vertical/horizontal)	m	250/1000
		Hopper capacity/filling height	m3/mm	0.6/1370
		Concrete slump range	mm	80-230
		Concrete delivery cylinder diameter/stroke	mm	230/1600
Power system	Main motor (diesel engine)	Model		BF6M1013
		Rated power	kw	186
		Rated rev	r/min	2100
		Manufacturer		DEUTZ
Hydraulic system	Type			Open type
	Pressure of hydraulic system	Mpa		32
	Main oil pump	Model and type		280
		Rated working flow	L/min	560
		Manufacturer		KAWASAKI
	Pumping oil cylinder diameter /stroke	mm		170/1600
	Capacity of hydraulic oil tank	L		600
Mixing system				Large torque at low speed
