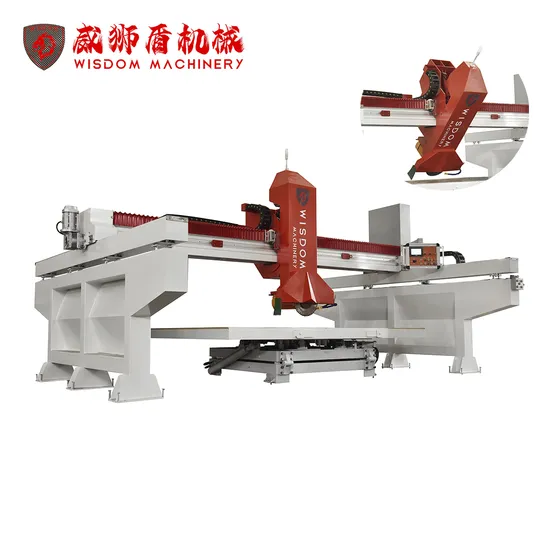

Wisdom Machinery Wsd625m PLC Control Automatic Stone Cutting Machine Bridge Saw for Granite Stone

Product Description

Jumbo slab optional, Max cutting size: 3500*2200 mm
Full size miter cutting optional
1. Super heavy duty Casted iron bridge
2. Monoblock frame, easy for installation and transportation
3. Side beam only 4 meter, require less footprint
4. 25Hp Italian type Blade motor,30Hp optional
5. Double speed motor , Variable Frequency Drive (VFD) optional
6. Auto on/off water
7. Plunge Cutting Miter Feature
8. Heavy duty hydraulic rotate table
9. Table lock at automatically at every 45°
10. Heavy duty green laser (auto and manual on/off )
11. Easy operation interface available in English and Spanish
12. Metric and Imperial unit
13. Swivel Arm operator panel
14. Industry anti water Wireless controller
15. Super heavy steel walls

Specification

Main motor power	Unit	18.5KW
Max cutting size	mm	3200*2000*200
Miter degree	°	45
Blade size	mm	450-625
Blade speed	Rpm	(Double speed)
Table tilt angle	°	85
Table rotate degree	°	360
Total power	kw	27kw
Water consumption	M³/h	4
Weight	kgs	6800
Hydraulic oil	#	LHM46
Bridge oil	#	LHG68
Dimension	mm	5900*4000*3200

Footprint
Product pictures

Company Intruction
You can always trust Wisdom
With more than 10 years committed to the stone machinery industry, Wisdom Machine is an experienced manufacturer.
Our machines are designed with American standard, and for maximum durability and high efficiency so that we can provide competitive stone machines for customers and continuously create value for customer, to achieve mutual benefit.
Package and Loading
Similar Products
FAQ
1. What is your Warranty Time
We provide 2 years free parts warranty for our bridge saw.
2. What is the MOQ?
1 Set
3. Can you make custimzed stone machine?
We have experienced and professional engineer, to make custmized stone machine is our advantage.
4. What is the lead time of your machine?
For standard machine, takes around 20-30 days, for custimzed machine, lead time will depends.
