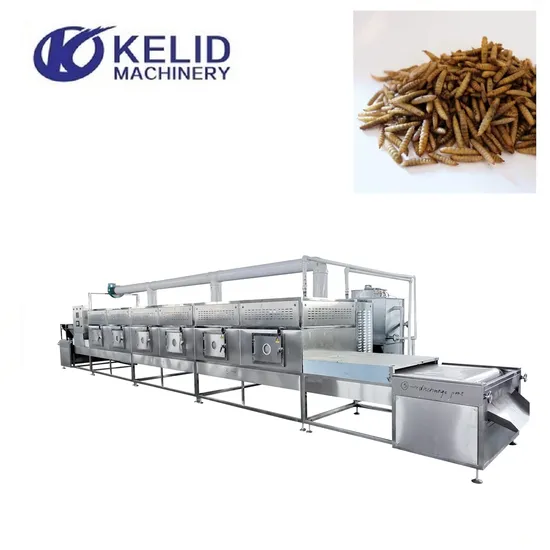

Industrial Microwave Bsfl Mealworm Drying Baking Oven Machine

Product Description

Industrial Microwave BSFL Mealworm Drying Baking Oven Machine
Product details
Introduction of microwave:
The microwave is an electromagnetic wave has a frequency of 300MHz-300GHz. The moisture in the heated mediu are polar mocules, under the cation of repidly changing high-frequency electromagnetic fields, their polar orientation will change with the change of the external electric field, causing molecular motion and mutual friction effects. At this time, the field energy in the microwave field is converted into thermal energy in the medium, so that the temperature of the material is increased, and a series of physicochemical processes of the heating and expansion are fenerated to achieve the purpose of microwave heating and drying.
Observation Window
Control Belt
Technical equipment

Equipment Model	KLD-Microwave Drying Equipment	KLD-Microwave Drying Equipment
Operating frequency	2450±50MHZ	2450±50MHZ
Rated input apparent power	≤60KW	≥120KW
Microwave output	≥50KW	≤110KW
Temperature	70-200ºC(controlled)	70-200ºC(controlled)
Type of cooling	Water-Cooling/Air cooling	Water-Cooling/Air cooling
Inlet and outlet height	40-100mm	40-100mm
Height of conveyor	600-1000mm	600-1000mm
Transmission speed	0~10m/min(adjustable frequency)	0~10m/min(adjustable frequency)
Dehydration Rated	40-50KG/hour	40-50KG/hour
Contour dimension	12500mm*1600mm*2200m (customized)	12500mm*1600mm*2200m (customized)
Width of conveyor belt	750±100mm(customized)	1000±100mm(customized)
Microwave leakage standard	ISO≤5mw/cm²	ISO≤5mw/cm²

Sample Pictures
Company information
Jinan Kelid Machinery Co., Ltd.
Jinan Kelid Machinery Co.,Ltd is a modern science and technology enterprise that integrates R&D,manufacturing and sales services.Specializing in the production of microwave drying ,heating, sterilizing, thawing,extracting,equipment.
Kelid is professional manufacturer in the field of industrial microwave design,manufacturing and application.With experienced engineers,strong technical development team and over 10-year' s technology in industrial microwave equipment manufacturing, Kelid has built good cooperative relationship with domestic related research institutions.
Service
Pre-sale services
1).Provide professional advisory services
2).Communicating with customer and learn your requirement
3).Welcome to visit our factory
Services during the sales
1).Confirm every terms and details and sign contract with customers
2).Inspect the machine before leaving the factory.
3).Packing machines and delivery on time
After-sale services
1). Provide installation, commissioning and training
2). Provide necessary technical support and update information.
Packing&shiping
F&A
Q.What's the power source of the machine?
A: Electricity
Q. What's the main material of the machine?
A: SUS
Q: What's the voltage of the machine?
A: The voltage can be designed base on your local voltage.
Q: What's the dimension of the machine?
A: Machines with different power have different dimension. Bigger power, bigger dimension.
Contact us
If you are interested in our products or have some questions,Please contact us.
