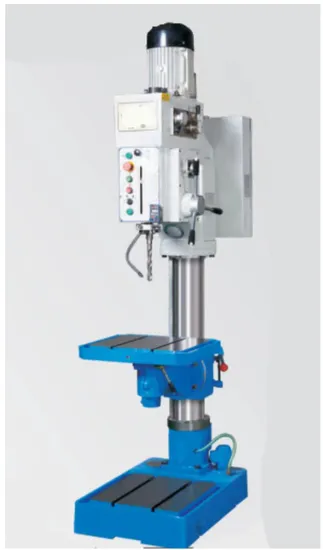

Pillar Type Vertical Drilling Machine Z5040/Z5050

Product Description

PILLAR TYPE VERTICAL DRILLING MACHINE Z5040/Z5050
Characters:
New-designed,pleasing appearance, compactconstruction, wide speed changerange,easy tooperate.
Easy operation with its unique workable,and bothmotor-drive and manual-operatedlifting device.
The working table can be rotated 180 and can be tited + 45° also, it is reliable and
easy job can be done.eEquipped with coolant system and tappingmechanism.eEquipped with shortcut and overload protection, its electricasy stemwith powerful spindlem-otor, it designed according to lEC standard.Characteristic protection device is safe and rel-iable.ldeal choice for single pice, small batch and ma-ss production for drilling,counterboring.reaming,tapping,spot facing,etc.
Specification:

Model No.	Z5040	Z5050
Item No.
Moving
Max,drilling capacity	40 mm	50 mm
Max.tapping capacity	M27	M30
Distance spindle axis to column generating line	360 mm	360 mm
Diameter of column	160 mm	180 mm
Spindle
Spindle taper	MT4	MT4 or MT5
Spindle travel	180 mm	240 mm
Max.Dimension spindle nose to table	590mm	570 mm
Max.Dimension spindle nose to base	1180 mm	1160 mm
Table travel	550 mm	550 mm
Spindle feeds	0.07 0.15 0.26 0.40 mm/r	0.07 0.15 0.26 0.40 mm/r
Spindle speed range	42~2050 r/min	42~2050 r/min
Spindle speed series	12	12
Dimension of worktable surface	550x470 mm	550x470 mm
Dimension of base table	450x440 mm	450x440 mm
Other
Overall height	2330 mm	2380 mm
Main motor	2.2/2.8 kw	2.2/2.8 kw
Coolant motor	40 w	40 w
Packing dimension	108x62x245 cm	108x62x245 cm
G.W/ N.W.	815/755 kg	1045/985 kg
Standard accessories		Special accessories
Drill chuck		Multi-spindles
Arbor		Angle vice
Taper sleeve		Safety guard
Drift
Eyelet boltse
Wrench

Specification:
FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
