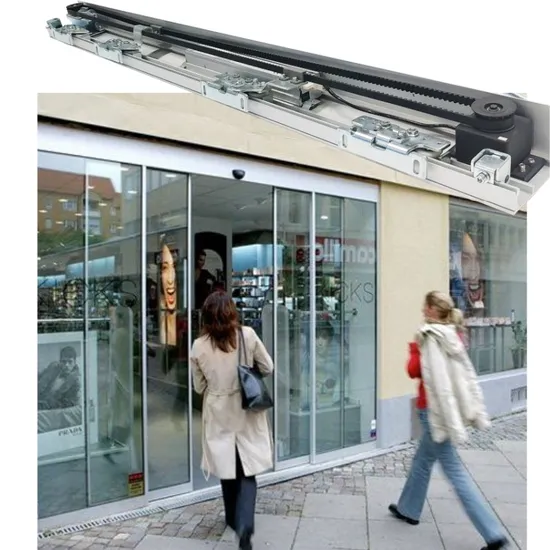

Comercial Telescopic Door Opener Interior Glass Barn Doors Automatic Door System Operators

Product Description

Product DescriptionAutomatic sliding Door System Function1. The motor is driven by a high-torque servo motor without a reduction gearbox design,Small mechanical friction, low loss, low power and high energy efficiency. 2. The controller's stacked structure design optimizes and streamlines space occupation. 3. Compared with traditional brushless motors, they wear less, can be protected in multiple ways, and have a longer service life. 4. With unique digital display window , various parameters are clear to show. 5. Tens of thousands of aging tests, low failure rate, 3 million+ fault-free cycle operation tests 6. With ultra-low noise power unit(<40 dB), it is also simple and convenient to install. 7. Equipped with full-function remote control device. 8. Can be customized according to door width and door weight, silver and black options. Whether you are renovating your home or designing a new commercial space, these automatic sliding door are sure to impress. Order your custom-made Caelus automatic sliding door opener today and transform your space with a touch of rustic charm and modern elegance.

model	QT68
brand	Caelus Automation
Standard adaptor door width	Single open 500mm~2100mm/Double open 500mm~1050mm
Door door form	Single open	Double open
Weight of door blade type	150kg×1	75kg×2
Standby power	< 5W(Single open without lock statu)
Opening rate	100~500mm/s ( Adjustable)
Speed as Closed	100~500mm/s ( Adjustable)
Time of opening	0~20s(Adjustable)
Operating ambient temperature	-30ºC -50ºC
Anti-shear speed in place	0mm/s( Safe and harmless)
Standard function	Infrared sensor,Push then open,Manual push-pull

servo motorHigh torque servo motor drive, longer service life; main controlunit adopts vector control algorithm, smooth operation,resistancerebound; standard intelligent Bluetooth module, support mobileAPP control; high appearance level aluminum shell packagingclassic appearance design. Max 150kg door weight(Single open 150kg×1,Double open 75kg×2)MuteCaelus sliding automatic door:Silent testlower noise,more serenity <40dB(A)
Traditional automatic door:Reducer box buzzing noise, motor wear noise, etc.Safety★ Safety anti-pinch,Vector control algorithm, microcomputer control system for precise monitoring, quick response, and rebound whe
encountering obstacles. Anti-shear force in place<10N

Standard function	Extended functions
Infrared sensor When the human body is close to the door, it will open automatically, and the sensing distance range can be adjusted	Mobile phone control Accessible to remote modules, supporting diversified personality settings
Push then open Manually push the door, and the door motor immediately recognizes the opening signal and starts automatically	Switch control Support matching of various press switches, touch switches, foot switches, etc
Manual push-pull In case of power failure, the door can be opened/closed manually in an emergency	Remote control It can realize functions such as unlocking, locking, opening, closing, and arbitrary start and stop
	Access control system Support password/card/fingerprint/face recognition and other devices to authorize door opening and clock in
	Voice control Support smart voice box such as Xiaoai, Xiaodu, Huawei and ****** Genie

	Caelus servo motor	Traditional automatic door
life	No reduction gearbox design, small motor wear and more Heavy protection, longer service life	The gears of the reduction box are very easy to wear and the maintenance cost is high. The motor has a limited number of times and a short service life.
Install	1.Quick installation components, easy to install2.Self-learning and adapting to the best state when powered on status, fool-proof installation is easier	1. The mechanical hardware structure is complex and the installation steps trouble 2.The installation and debugging procedures are cumbersome and technically difficult
Energy saving	★Small mechanical friction★ low loss ★low power ★ high energy efficiency	★Mechanical friction is large★ power and loss are high ★Low energy efficiency

Caelus servo motor	Traditional automatic door
Safety	★Anti-pinch systemincluded ★High-performance power supply to prevent short circuit, overvoltage and overcurrent faults and eliminate hidden dangers	Old-fashioned square wave control is insensitive and kinky Force driven, anti-pinch function may cause loss of control and injury.
Stablize	★ Vector control system, smooth operation ★ Tens of thousands of aging tests, low failure rate, 3 million+ of cycle operation without failure Adaptive and self-adjusting operating curve keeps the door in optimal operating condition.	1.Old-fashioned square wave control has poor accuracy and is easy to Stuttering occurs 2.Complex structure and many fault points 3.Mechanical wear and long-term use are prone to transportation problems. line error, requiring frequent manual adjustment and maintenance
Function	★ Supports rich personalized settings such as operating speed, door opening and closing time, etc.★Supports free switching between automatic, inching, fully open, fully closed and other modes	The functional system is limited and backward, and the function settings are relatively Less, inconvenient to operate

How many switches can be used to controlSupports various switches, remote controls, sensors, password/card access control, fingerprint recognition, face
recognition,smart voice, mobile phone Bluetooth, remote control and other smart opening methods.Company Profile
FAQ
Q1: Are you a manufacturer or trading company?
A: We have more than 20 years' experience in automatic door R&D and manufacturing Our factory is in Changsha. Welcome to our factory.
Q2: How long is your warranty?
A: 1 years.
Q3: What is your minimum order quantity (MOQ)?
A: The MOQ is 1 set.
Q4: What are your terms of payment?
A: We accept T/T, Western Union, PayPal, Alipay, Credit card and Cash.
Q5: What is your way of packing?
A: Carton and wooden packing, they are strong, safe and reliable.
Q6: Do you have the products in stock?
A: Most standard automatic door system and parts are in stock.
Q7: How long is your delivery time?
A: Standard product about 3-5 days after payment. Customized products depend on agreement.
Q8: How about the quality of your product?
A: Our maglev products is the most advanced in the world. Not only in terms of duration,but also in performance.Easy installation,easy maintenance
Q9: What are your main products?
A: C3000 is our best seller. It's a life changing hi-tech product, which can provide you extreme silent and smooth experience with max working load over 200kg. Meanwhile, it also has a slim size--40mm*23mm, length customizable.
Q10: Can you accept customization?
A: Yes. We have professional R&D team. we will offer complete solution according to customer' requirements to customize whole set door for project
