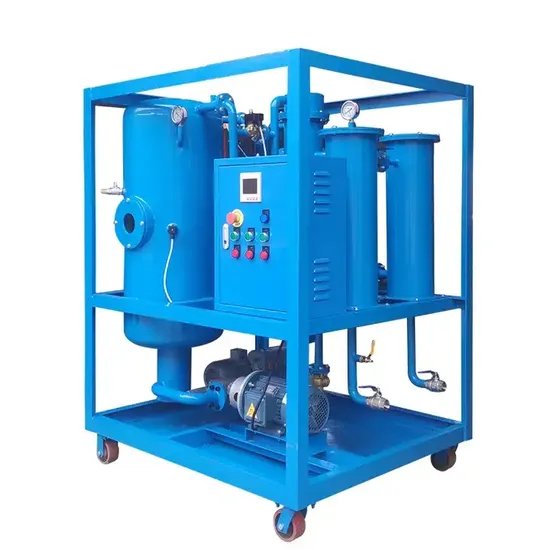

Oil Circulation Insulating Oil Refinery Plant

Product Description

Product Description
Application: It is suitable for maintenance of power facilities higher than 110KV with deeply deteriorated transformer oil, insulation oil, and the insulation oil need recovery of PH value and solute water level or recovery of color. Generally it is used for vacuum processing of transformer oil, new oil, imported oil, mutual conductor oil, and capacitor oil of power transmission system or refrigerator oil ect. . Also, it can be used for vacuum filling and drying of transformer.
Advantages: 1.High extraction rate double stage vacuuming system, it is able to utmost enhance the vacuum environment of internal vacuum tank so as to reach high vacuum, the ultimate vacuum≤5Pa,working vacuum≤35Pa,which make the oil temperature stable in processing to meet the requirement of onsite maintenance of transformer for vacuuming and reduce processing time. 2. After one cycle of processing, the break down voltage can increase 50KV, avoid ageing of oil resulted from repeatedly heating of common purifier. 3. Double stage vacuum separation system and vacuum boosting technology make this type of vacuum separator have higher vacuum degree, which is able to rapidly and reliably remove moisture, gas, oil sludge etc impurity from oil, and reduce dielectric loss, restore PH and water content level, highly enhance flash point and dielectric strength of oil. 4. Special decoloring regeneration system, polymer adsorption material utilized to neutralize acid substance of oil, using micropore to retain the free carbon and small jelly to change the oil color, remove dark color of ageing transformer oil and make it similar to new oil color. 5. Flexible chemical discharging device designed, time less, swift, and consumption low. Decoloring under vacuum is able to highly reduce processing costs, waste residue is harmless. 6. Humanized design, highly automatic, simple operation system and advanced safety system to fully ensure the convenience and safety during operation, it is able to long term online working. 7. Dual-function machine, it is either a purifier, or a vacuum creator, it can be used for vacuum filling of power insulation facilities, reducing transformer maintenance time, improving quality of all sorts of imported oil, new oil. Detailed Photos
Product Parameters

Product	Single	5	10	20	30	50	70	100	Proposed to use double stage to deal with 100L/min. capacity
	Double	5	10A	20A	30A	50A	70A	100A	150A	200A	250A	300A
Flow rate	L/min	5	10	20	30	50	70	100	150	200	250	300
Total power	KW	5	15	24	24	30	48	60	108	108	144	144
Pipe diameter	DN mm	25/16	25/16	32/25	32/25	44/32	44/32	50/44	50/44	50/44	65/50	65/50
Gross weight	KG	100	180	240	320	420	700	750	1500	1860	2100	2200
Overall dimension mm	Length	700	1200	1200	1300	1300	1600	1600	1600	1600	2000	2000
	Width	500	800	1000	1000	1000	1400	1400	1400	1400	1600	1600
	Height	800	1200	1400	1450	1500	1800	1800	1800	1800	2250	2250
