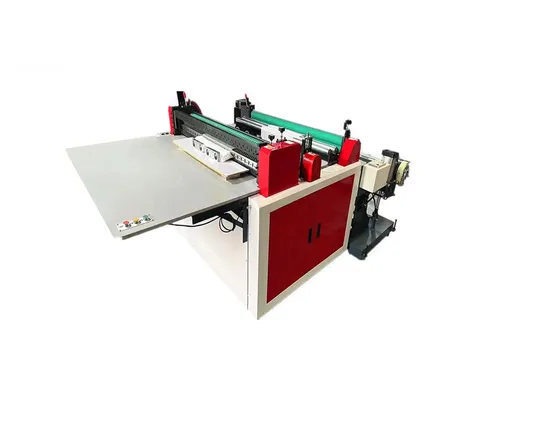

Roll to Sheet Cutting Machine Paper Film Material Cutter Sheeting Machine
| US$7,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LR-1000
Classification
Flat Knife Cutter
Driven Type
Electric
Type
Industrial Cutter
Blade Material
Stainless Steel
Computerized
Computerized
Using
Paper Roll Cutting
Cutting Method
Straight Knife Cutting
Packaging Mode
Manual Collecting
Cutting Speed
Max. 120 Cuts/Min
Transport Package
Customized
Specification
Customized
Trademark
Land River
Origin
China
HS Code
8441100000
Production Capacity
50sets/Year
Packaging & Delivery
Package Size
190.00cm * 355.00cm * 150.00cm
Package Gross Weight
800.000kg
Product Description
Product Description This machine is suitable for cutting various types of paper, paper plastic composite materials and other large rolls, and is currently an ideal equipment for high-quality large roll cutting in China. Material weight range: 50-400gsm.Performance and characteristics:
--Pneumatic feeding
The safety protection cover of the rear feeding clamp prevents safety accidents during operation
--Servo motor
The servo motor has high power and precision in fixed length, achieving stable and long-lasting fixed length output compared to ordinary stepper output. The failure rate is low
--Knife structure
The use of thickened casting structure and the use of smashing knife cutting method have improved the insufficient cutting force of scissor cutting. Avoided knife damage
Detailed Photos
Product Parameters
| Model | LR-1000 |
| Max. Unwind Diameter | ø1000mm |
| Max.Cutting Width | 50-950mm |
| Raw Material Range | 50 ~ 100g/m2 |
| Cutting Speed | 0-120 cuts/min |
| Cutting Length | 50-1500mm |
| Vertical Slitting Minimum width | 50mm |
| Slitting Knife | As required |
| Cutting Precision | ±0.2mm |
| Cutting mode | Under the knife to cut |
| Tension Control | Magnetic Particle |
| Control Type | PLC |
| Power Requirement | 380V 50Hz 3.5KW |
| Weight | 800Kg |
| Overall Size | 1900×3550×1500mm |
