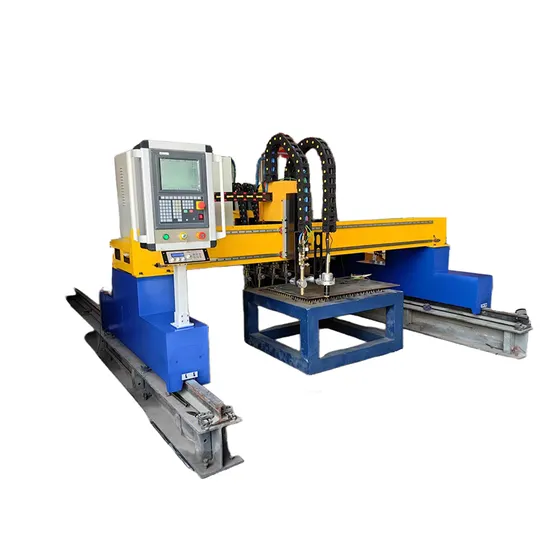

Ground Rail Type Steel CNC Plasma Cutting Machine with Flame Cutting Torch

Product Description

Product Description
1. All welded as seamless steel structure. Steady structure and long life time
2. with Taiwan HIWIN square guide rails, high cutting speed and precision.
3. STARFIRE control system with THC device.
4. China made plasma power , of course, if you need, also can be optional America Hyperthern plasma power.
5. Cutting material: steel, copper, iron, aluminum, galvanized sheet, titanium plates, and so on.
6. Suitable Software :ARTCUT, Type3, ArtCAM. Beihang Haier.
7.With exporting plywood package
Thick steel welded bed structure knife table STARFIRE control system with THC
Plasma torch Control cabinet Plasma source LGK plasma power
stepper motor nozzles and electrodes Fastcam software
STARFIRE control system with THC
Can be packaged with the exporting plywood package
Application
Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.
Product Parameters

specification	3060 model
Processing area	3000mm*6000mm (1500*3000mm)
Processing material	Iron plate, aluminum, galvanized sheet steel, titanium plates, white and sheet metal
Processing thickness	0.5-15mm
Cutting speed	0-8000mm/min
power	8.5KW
Input voltage	380V
Power frequency	50Hz
Plasma current	100A-200A
Control system	STARFIRE control system with THC
Work mode	Non-contact arc starting

Optional parts
1, Different working size:3000*8000MM or other sizes according to customers' needs
2, Servo motors and drivers
3, Different power: 65A /100A /200A for different thickness cutting, also can be optional America Hyperthern plasma power.
4, Thin board, you also can choose DSP control system without THC, then the machine will be cheaper, But it's best to cut board 0-3mm.
Sample photos
FAQ
1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account by L/C or T/T
4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
Company Profile
Jinan Zhongke CNC Equipment Co., Ltd. is a manufacturer of professional CNC machining centers, panel furniture production lines, CNC cutting machines, woodworking carving machines, advertising carving machines, laser carving machines, marble carving machines, double head carving machines, cylinder carving machines, and automobile foam mold carving machines. The company has established dozens of branches across the country, laying a foundation in the domestic market. It has been sold in overseas markets to countries such as the United States, Canada, the United Kingdom, Australia, Russia, and India.
As a professional research and development enterprise for CNC equipment in China, we are dedicated to providing customers with excellent after-sales service, including product design, installation, training, and maintenance; Our service tenet is to provide customers with technology, reliable quality products, and complete technical solutions, and to pursue customer satisfaction.
