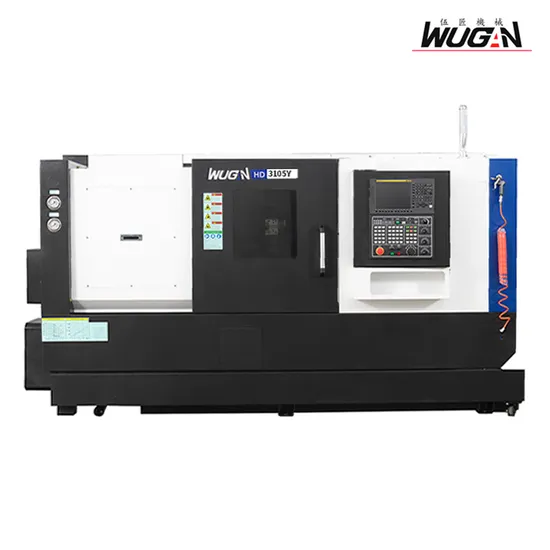

HD3105y-50 Wugan Y Axis CNC Lathe, CNC Lathe Desktop Precision Tooling Machine

Product Description

Product Description
·One-bed,30° inclined bed, which significantly enhances machining stability and performance.
·The integration of hard rails across all axes guarantees the production of high-quality, precision-engineered products.
·Achieves impressive rapid traverse speeds up to (X/Z): 265/730 m/min, ensuring efficient operations.
·Versatile structural lineup to cater to diverse customer requirements, featuring extended beds, turret punch presses, and servo axes.
·Innovative compact design with a built-in motor reduces machine length, optimizing space (standard bed style).
·Ergonomically designed for user-friendly operation and hassle-free maintenance.
Product Parameters

ITEM			unit	HD3105Y
CAPACITY	Swing Over the Bed		mm	940
	Swing Over the Carriage		mm	870
	Max.Turning Dia.		mm	300
	Max.Turning Length		mm	660
	Bar Capacity	Main	mm	74
		Sub	mm	-
SPINDLE	Chuck Size	Main	inch	10′′
		Sub	inch	-
	Spindle Bore	Main	mm	74
		Sub	mm	-
	Spindle Speed	Main	r/min	3,000
		Sub	r/min	-
	Motor(Max/Cont.)	Main	kw(HP)	18.5/15
		Sub	kw(HP)	-
	Torque(Max/Cont.)	Main	N·M	470/286
		Sub	N·M	-
	Spindle Type	Main	-	BELT
		Sub	-	-
	Spindle Nose		-	A2-8
			mm	-
	C-axis Indexing		deg	0.001
FEED	Travel	X/Y	mm	215/110{±55)
		Z/ZB	mm	730
	Rapid Traverse Rate	X/Y	m/min(ipm)	24/10
		Z/ZB	m/min(ipm)	30
	Slide Type		-	BOX GUIDE
TURRET	No.of Tools		ea	12[24]
	Tool Size	O.D	mm	25[24Tool:20]
		I.D	mm	32
	Indexing Time		sec/step	0.2
	Y-Axis Type		-	WEDGE TYPE
LIVE TOOL	Milling Tool Speed		r/min	4,000
	Motor(Max/Cont.)		kw(HP)	2.7
	Torque(Max/Cont.)		N·M	46
	Collet Size		mm	∅16{ER25}
	Type		-	BMT55P
TAILSTOCK	Taper		-	MT#5
	Quill Dia.		mm	∅100
	Quill Travel		mm	120
	Travel		mm	730
TANK CAPACITY	Coolant Tank		ℓ(gal)	180
	Lubricating Tank		ℓ(gal)	3
POWERSUPPLY	Electric Power Supply		kVA	35
	Thickness of Power Cable		mm²	Over 25
	Voltage		V/Hz	220/50
MACHINE	Floor Space(LxW)		mm	3,284x1,817
	Height		mm	1,950
	Weight		kg(lb)	6,200
CNC	Controller-		-	FANUC Oi Series

Detailed Photos
One-piece bed
Optimized structural analysis
Through advanced structural analysis, the main unit structure is optimized to lower machine height while maintaining excellent dynamic rigidity during heavy machining. The HD-3105's 30° inclined bed further enhances machining stability, even under intense cutting conditions.
Integrated Cutting Fluid Tank
Positioned at the front of the bed, the cutting fluid tank is designed for enhanced usability, with easy cleaning of ferrous chips on the machine's right side.
Hard Rail
The implementation of hard rails on all axes delivers exceptional vibration absorption during heavy cutting, ensuring superior product quality. Specifically, the Z-axis's extended shaft design provides outstanding performance in machining long shaft products.
Sealed GIB construction
The X-axis guideway mounting surface features a sealed GIB structure, minimizing damage from cutting and enhancing the durability of the X-axis guideway.
6-sided constrained design improves mobility
Travel X/Y: 265/730 mm ·Spindle box
The symmetrical box body and heat dissipation plate design minimize thermal deformation. The combination of tapered roller bearings and angular contact ball bearings on the shaft enhances cutting power. Additionally, the 3V belt's minimal length reduces vibration and extends the spindle's lifespan.
Spindle specifications: A2-8 (12" chuck)
Spindle speed: 2,800 rpm
Motor power: 18.5/15KW
