HDPE Drainage Board Extrusion Machine
| US$320,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
PSB-3000
Product Type
PE Board
Board Layers
Single Plate
Screw No.
Single-screw
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS
Customized
Customized
Condition
New
Delivery
60-90 Days
Automatic Type
Semi, Automatic, Full-Automatic
Screw Dia.
150mm
L/D Ratio
30:1
Product Width
3000mm
Output
500kg/H
Transport Package
Plastic Film and Boxes
Specification
2000mm, 3000mm, 4000mm
Trademark
JUNSHENG
Origin
Jiaxing, China
HS Code
84778000
Production Capacity
50 Sets/Month
Packaging & Delivery
Package Size
2200.00cm * 500.00cm * 280.00cm
Package Gross Weight
20000.000kg
Product Description
Plastic Water Drainage Dimpled Membrane Extrusion Machine

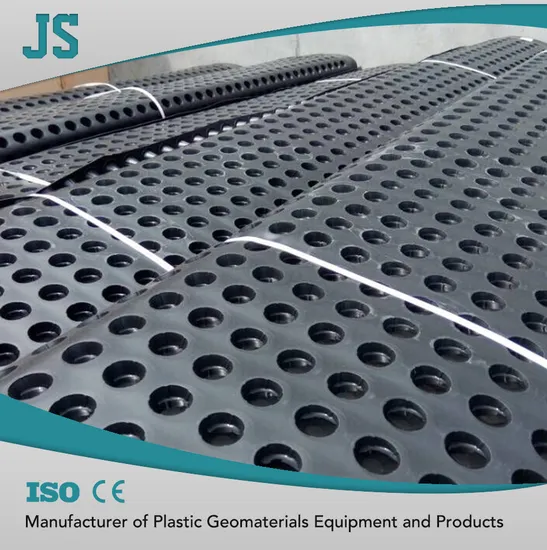

The apply of Drainage Board Production Line is to produce drainage boards, which are plastic sheets with dimples or bumps that create an air gap between the foundation wall and the soil. Drainage boards are used for foundation waterproofing, drainage, and insulation. They can prevent water from seeping into the basement, reduce heat loss, and protect the foundation from soil pressure.
Junsheng Brand machines have passed CE certificate and exported to over 20 countries, like Turkey, Poland, Russia, Romania, Germany, Kosovo, etc.
Machine guarantee is 2 years and we offer Turn-key project.
Brief Introuction of Junsheng Waterproof Sheet Machine:
- Convex wall thickness of the circular convex on the drainage panel is well-proportioned.
- Compression strength is 50% higher than similar product, which solves the problem.
- Power saving 30%.
- Higher output
- Same forming roller, with changing different dimples, different sizes will be got.
- With changing mould, round and square shape.
- Drainage board thickness range is 0.5-5.5mm, width up to 5000mm.
Main Technical Specification of Junsheng Waterproof Sheet Machine:
| Model | PSB-2000 | PSB-3000 | PSB-4000 | PSB-5000 | |
| Screw dia. | mm | 135 | 150 | 180 | 150×2 |
| L/D ratio | L/D | 30:1 | 30:1 | 30:1 | 30:1 |
| Product width | mm | 2000 | 3000 | 4000 | 5000 |
| Product height | mm | 8, 10, 12, 15, 18, 20, 25, 30, 35, 40 | |||
| Output | Kg/h | 400 | 500 | 700 | 1000 |
| Line speed | m/min | 2-6 | |||
| Installed capacity | KW | 252 | 320 | 410 | 550 |
| Power consumption | KW | 132 | 160 | 220 | 300 |
| Dimensions (L×W×H) | m | 22×4×2.8 | 22×5×2.8 | 22×6×2.8 | 23×6×2.8 |
| Total weight | T | 16 | 20 | 28 | 35 |
More Photos:
