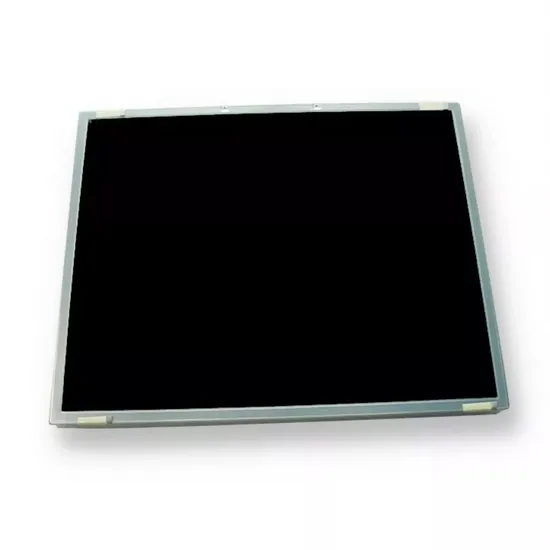

High Quality 1280X1024 19′′ G190etn01.2 LCD Display for Industrial Equipment

Product Description

Product Description High quality 1280x1024 19'' G190ETN01.2 LCD display for industrial equipment
Head Sun is the first level agent of AUO, LG, BOE, Innolux display, we also could accept customise service with brightness, house, interface etc. All of LCD screen also could be assembed with touch panel.
Detailed Photos
Product Parameters

Brand	Headsun	Model P/N	G190ETN01.2
Diagonal Size	19"	Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 86PPI	Pixel Format	RGB Vertical Stripe
Active Area	376.32(W)×301.056(H) mm	Treatment	Antiglare
Outline Dim.	396(W)×324(H)×15.68(D) mm	Contrast Ratio	1000:1 (Typ.) (TM)
Luminance	350 nits	Backlight	WLED , 50K hours , With LED Driver
Viewing Angle	85/85/80/80 (Typ.)(CR≥10)	Response Time	6.5 (Typ.)(G to G)
View Direction	Symmetry	Operating Mode	AMVA3, Normally Black, Transmissive
Color Depth	16.7M/1.07B 99% sRGB	Designed For	digital signage monitors
Weight	80gs (Typ.)	Touch Panel	without/customized
Frame Rate	60Hz
Interface Type	LVDS (2 ch, 8-bit) 30 pins Connector
Power Supply	3.3V (Typ.)
Environment	Operating Temperature: -30 ~ 85°C ; Storage Temperature: -30 ~ 85°C

Assembled with touch panel:

	Lens's Features > Shape: Irregular and hole > Color: Silk printing, Logo > Glass brand: AGC, Corning, CSG, ETC > Treatments: AG, AR, AF, Anti-explosion > Thickness: 0.55mm, 0.7mm,1.0mm, 1.1mm, 1.8mm, 2.0mm, 3.0mm, 4.0mm
	Sensor Features > Sensor material: Glass, Film,Film + Film > Thickness:0.125mm,0.4mm, 0.55mm, 0.7mm, 1.1mm > FPC: Shape design optional > IC: Focaltech, Goodix, Cypress, EETI > Interface: IIC, USB, RS232, SPI
	Assembly > Optical Bonding with OCA > Double faced adhesive tape

Assembed with house and driver board
Application:
Certifications

Packaging & Shipping All product are packing in the right size box.
Shippment:
1). Payment Terms: T/T, Paypal
2). Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3). Delivery time: 7-10 days for sample, 3-4 weeks for mass production goods.
4). Packaging Details: Packed in anti-static bags with foam box to ensure safety in transportation
5). Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
Company Profile Head Sun Co., Ltd is a new hi-tech enterprise, which is specialized in manufacturing Touchscreen and LCD display with more than 13 years' experience. We can do customized touch panel, lcd display, lcd touch display products according to the solution and drawing of customers to achieve various structures of products as your requirement. Head Sun was established in 2011, which is located in Hua Feng Tech park, Shenzhen City, with 200 employees & an area of 3,500 square meters for factory and office. Dust-free purification workshop.
Our Advantages 1. Strong production capacity to ensure delivery.
3,000 square meters factory and dust-free workshop, more than 150 employees.
8 product lines of G+G & G+F+F and 6 product lines of CTP+LCM full-fit bonding. Monthly output can reach 40,000 pieces.
Yellow sensor light process + laser sensor process.
2. Experienced Team
More than 10 years of experience professional engineering team.
3. Accept OEM & ODM.
Customers can customize their products. You need to send the drawings and samples to us. Our engineer will evaluate it for you.
4. Modern Technology
Using mainstream touch screen yellow light process technology.
5. Strict and complete quality control system and have our laboratory for testing. So customers do not need to worry about the quality.
Exhibitions:
FAQ Q 1. What service do we offer?Answer: We are a professional manufacturer of touch screen and LCD monitor and can help you design and do customized solution.Q 2. How long could I get the reply of my inquiry?Answer: Buyers will receive a answer within 12 hours.Q 3.What is the delivery time?Answer: For samples:15-20 days after getting the sample fee (Professional Custom-made) For cargo:25-30 days after the receipt of funds.Q 4.What is the payment term?Answer: T/T, Paypal and Western union etc. For samples: payment in advance.For mass production: 50% deposit and 50% balance before shipmentQ 5. How do you control the quality of the items?Answer: Each product will be strictly tested one by one before shipping out.Q 6. How long is the warranty?Answer: Generally the warranty period is one year. It depends on different products.Q 7. How is after sales service?Answer: Our sales & engineer will provide the sustained support, guidance of techniqueQ 8.What method of packaging do you use?Answer: The packing with anti-static bag+ bubble bag +foam box +strong outer carton.Q 9.What kind of the transportation do you offer?Answer: For small order & quantity, the goods will be shipped by the express like DHL, TNT, Fedex, UPS,EMS with customers own account.For cargo with the large packing, Adopting Air or sea and freight collect also from the buyer.
