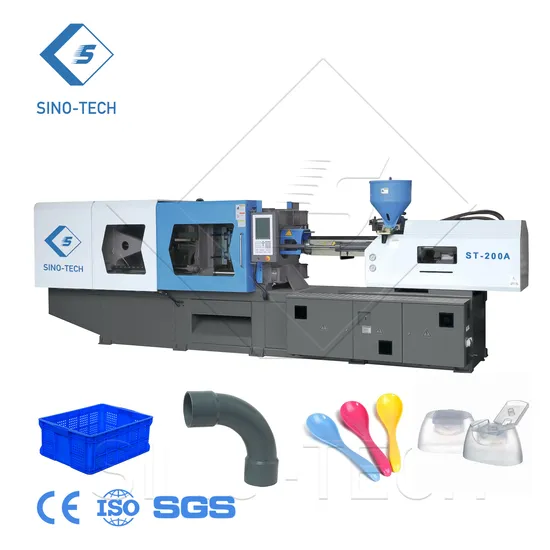

Disposable Plastic Knife Fork and Spoon Making Servo Motor Injection Moulding Machine

Product Description

Disposable Plastic Knife Fork and Spoon Making Servo Motor Injection Moulding Machine
Product Description
SINO-TECH ST-160SEIll injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. ST-160SEIll with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main Features
1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3.Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 50 to 4000Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

Item		160SElll
		1600-629
Screw diameter	mm	40	45	50
Theoretical shot volume	cc	283	358	442
Shot weight (PS)	g	257	326	402
Shot weight (PS)	oz	9.1	11.5	14.2
Length/Diameter ratio	L/D	22.5	20	18
Injection pressure	MPa	223	176	142
Injection rate	cm³/sec	147	187	230
Injection stroke	mm	225
Max. Screw speed	rpm	274
Plasticizing capacity (PS)	g/s	23.2	30.0	33.6
Injection unit force	Ton	5.7
Carriage stroke	mm	320
Clamping force	Ton	160
Max. daylight	mm	1000
Clamping stroke	mm	480
Distance btwn. Tie bars	mm	470*470
Min mould dimension	mm	320*320
Mould thickness range	mm	150-520
Ejector force	Ton	7.7
Ejector stroke	mm	150
No. of ejector pins	unit	5
Max. motor power	kW	16.4
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	112.5
No. of heater zones	unit	4+1+1
Heater input power	kW	11.48
Ultimate capacity	kw	28.88
Current	A	39.5
Net weight	Ton	5.68
Oil filling capacity	L	320

Detailed Photos

Application
Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
