Hot Rolled Seamless Pipe Mill

Product Description

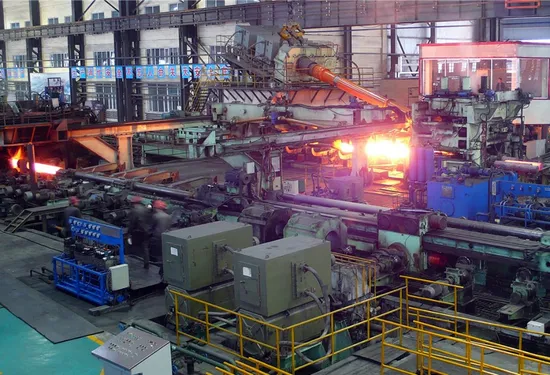

Hot Rolled Seamless Pipe Mill
The hot rolled seamless pipe mill of our company uses the world's advanced technology to produce qualified hot-rolled seamless steel tubes. Main uses: petroleum casing, high-pressure fluid delivery pipe, boiler pipe, structural pipe and machining pipe, etc.
Everyone is used to naming hot-rolled seamless pipe mills with mandrels for the wall forming process, such as MPM mills and Assel mills. There are two main types of pipe rolling mills, one is a continuous rolling mill, and the other is a cross rolling mill. According to the mandrel operation mode, the continuous rolling mill can be divided into three types: floating mandrel, limited mandrel and semi-floating mandrel. The limited mandrel mill can be divided into two-roll type (MPM) and three-roll type (PQF). The skew rolling mill is divided into three-high rolling mill (Assel) and two-high rolling mill (Accu Roll).
Production Process:
Billet Feeding → Inspecting → Grinding → Sawing → Heating → Piercing → Pipe Rolling → Reducing Diameter → Cooling → Straightening → Pipe Cutting → Water Pressure Testing → Flat Head Chamfering → Manual Inspecting → Weighing, Measuring and Marking → Packing
Model:
Unit 114mm Unit 219mm Unit 273mm Unit 325mm Unit 406mm Unit 508mm Unit 630mm Unit 711mm
Packing & Shipping
1. We use steel wire and wooden frame to fix the pipe mill.
2. In addition, used shockproof film to protect the main motors.
3. We use containers for shipping.
4. Generally speaking, we start at Tianjin sea port, but we also can start at other port according to customers need.
Our Factory
Our Customer
Integrated Services
1. Provide customers with a reasonable investment plan, filter the appropriate models recommended to customers.
2. Free equipment drawings, customer plant equipment planning drawings.
3. Provide the base map required for installation free of charge.
4. Provide equipment installation and commissioning until the buyer operates normally.
5. Provide professional technical training, as soon as possible to allow the buyer's operator to master the operation and use of the equipment.
6. Provide and coordinate auxiliary equipment, accessories, and consumables.
7. The warranty period is one year, except man-damage. If you have any question in operation in operating the machines, you can call us or send emails, we will solve the problem for you asap.
