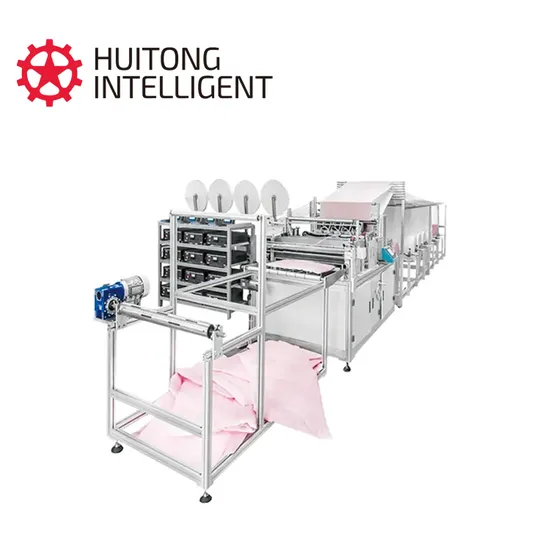

Fully Automatic 800mm Width 30PCS/Min Non-Woven Air Filter Bag Making Machine for Pocket Filter

Product Description

Automatic Medium Efficiency Filter Bag Machine

Automatic Medium Efficiency Filter Bag Production Line with Advanced Plastic Type Transfer System for Maximum Efficiency Medium Efficiency Filter Bag Machine can efficiently produce the filter bag ,From raw material feeding to the finished products can be automatic completed, and it is tidy ,time-consuming,and each inside space can be adjustable.
Ready to embark on a lucrative venture in Medium Efficiency Filter Bag production? Discover the essential machinery you need to succeed!
Features: 1. Adopts PLC, Integrated material rack mechanism,convenientfor loading and unloading.
2. Round blade type slitting strip,the edges are neat and uniform,Photoelectric detection positioning.
3. The upper and lower ultrasonic butt welding is fused,Finished products come out in piece and welded by electrical heating device, the surface is flat and the pattern is clear.
4. Double servo positioning, precise and controllable length.
5.Stacked material collection, quantity can be set freely,Automatic finished products collecting.
Technical Parameters :

Model No.	HT-QD01
Speed	15-25pcs/min
Output Power	9kw
Power Supply	Ac380v 50/60hz
Air Pressure	0.3-0.7 mpa
Weight	2500kg
Dimensions	10000× 1500× 2100 mm
