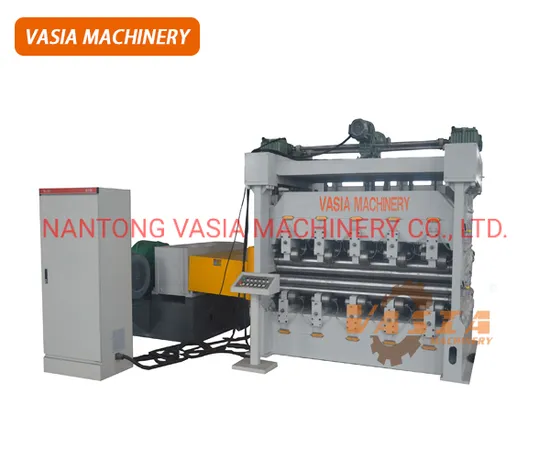

Steel Plate Straightening Machine Leveling Stainless Steel

Product Description

steel plate straightening machine leveling stainless steel
Machine Introduction :
1.The machine employs three structure , 2-high,4-high,6-high and can be matched with multi-group support rolls.
2.Straightening roll material: 42CrMo, GCr15, 9CrSi and 9Cr2Mo is available for selection.
3.Straightening roll treatment: stress relief by quenching and tempering, quenching (HRC54, HRC60),
hard plating treatment for cold plate, stainless steel plate and leveling roll surface.
4.Reducer: ZQ standard reducer, ZY reducer and TR reducer with hard tooth surface is available for selection.
5.Distribution box: self-made; it employs one-stage drive and two-stage distribution structure,
and its gear is the 20CrMnTi penetration gear.
6.Universal connecting shaft: automobile universal shaft and universal roll for the metallurgical industry.
7.Adjustment methods: manual and electrical adjustment.
8.Lubrication methods: mainly focus on lubrication operated by manual or electric pump.
9.Applications: applicable for general leveling for carbon steel plate, stainless steel plate.
10.We can design and produce for special requirements.
Optional Specifications:

Model	Thickness (mm)	Width (mm)	Straightening roller diameter (mm)	Working roller distance (mm)	Qty. of working rollers (PCS)	Straightening speed m/min
VASIA -1.5x1600	0.15-1.5	1600	50	55	19	0-20
VASIA-3x1600	0.5-3	1600	75	80	15	0-20
VASIA-6x2000	1-6	2000	95	100	13	0-15
VASIA-8x2000	2-8	2000	130	140	13	0-15
VASIA-12x2500	3-12	2500	150	160	11	0-10
VASIA-16x2500	4-16	2500	180	200	11	0-10
