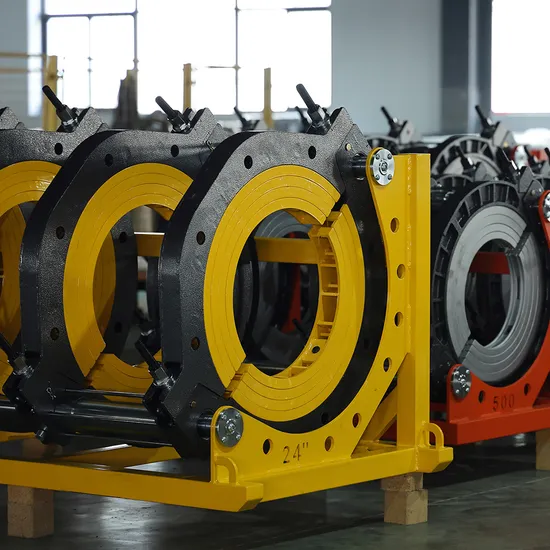

Professional Manufacturer Butt Fusion Welder 16-24 Inch/315-630mm Hydraulic HDPE Pipe Welding Machine

Product Description

Model		WP630AI
Suitable materials		PE,PP,PVDF
Range		16-18-20-22-24(inch)
Power supply		380V
Frequency		50HZ,60HZ is optional
Total power		10.1KW
Heating plate		7.5KW
Planing tool		1.5KW
Hydraulic station		1.1KW
Max.Pressure		0-8.0Mpa
Hydraulic oil		L-HM46
Max.Temperature of heating plate		270ºC
Temp.Deviation in Surface		±7ºC
Basic Frame	Plywood	1540*930*990mm
Hydraulic Unit	Plywood	680*530*730mm
Planing tool heating plate	Plywood	750*620*1260mm
Total Weight	G.W	519KGS

Frame(Carriage) ◊Complete welded steel structure, strong,free of distortion
◊Clamping part,inner fine-machined
◊Standard equipped with carrying handles
for easy transportation
◊Qualified hydraulic cylinder with quick
couplings, for easy installation
Heating plate ◊Cast aluminum body with built-in heating
elements
◊Anti-stick PEFT coating
◊Qualified aviation plug and heavy duty cableensure operation safety
Planing tool (trimmer) ◊Full gear transmission structure, for steady and long-life performance ◊Powerful copper-wiring motor ◊Durable, double edges HSS blade
Hydraulic station ◊Integrated hydraulic and electrical control,
for easy operation access
◊All-in-one control panel:
hydraulic actuation, pressure setting, timing.electric info display, temperature setting
◊Enclosure design, shielding splash and dirtand wheels, for easy transportation
Thanks for choosing Welping. We areconfident that it will bring you success andmeet your expectations. We have been inthis industry for 15 years. Product qualityand innovation have always been ourgoals. Now we have 78 employees thathave a wealth of experience. Due to the huge increase in business, anew 20000 m workshop is underconstruction, it will start producing in July.annual production capacity reaches20000pcs. More CNC machine centersand laser cutting equipments are investedIt's all for better products and service.
1. Payment
We accept 30% TT deposit and 70% balance payment before delivery or 100% TT in advance.
2. Lead time
Standard items and light-OEM items, WELPING can finish in around 10-15 days. 3. Warranty
18months from delivery date. We take full responsibility for parts with quality problems and provide them for free. 4. Customized design
Our experienced technical team can develop different solutions according to customers. MOQ is required for special requirements. 5. About agency business We look forward to cooperate with influential company.
