Automatic Paper Cup Glass Making Machine Price
| US$7,500.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JBZ-OCS
Speed
65-75PCS/Min
Required Paper
Single and Double Side PE Coated Paper
Automation
Automatic
Logo Printing
With Logo Printing
Certification
CE, ISO
Customized
Customized
Condition
New
Capacity
65-75PCS/Min
Color
Grey
Cup Size
3-12oz
Raw Material
Single and Double PE Coated
Power
6kw
Voltage
220/380V
Computerized
Yes
Weight
1400kg
Overall Size
2000*900*1600mm
Transport Package
Woodencase
Specification
SGS
Trademark
chinaworld
Origin
China
HS Code
84413090
Production Capacity
300 Sets
Product Description
Paper Cup Making Machine Price JBZ-OCS12
Detailed Photos

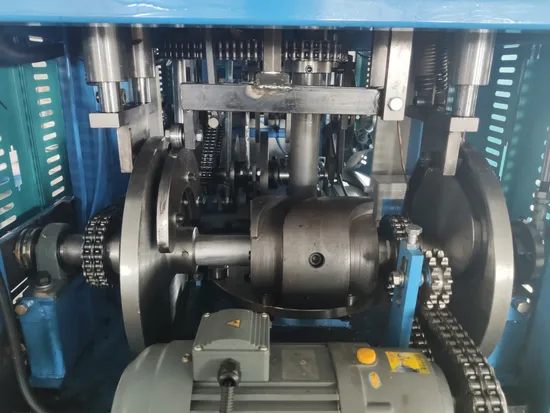

Product Description JBZ-OCS12 Paper Cup Making Machine is a multi station high-speed automatic machine which producing both single and double PE coated drink cups,ice cream cups through continuous process of automatic paper feeding,sealing,oil injection,bottom cutting,heating,knurling,curling and stacking.The machine adopting hot air system,full-automatic failure warning,counting,detection,stopping,etc.
Product Parameters
| Model | JBZ-OCS12 Paper Cup Making Machine |
| Cup Side Welding: | Heat Sealing/Ultrasonic heater |
| Paper Cup Size | 3 ~12OZ (30ml~330ml Mould exchangeable) Max Cup height to 120 MM |
Raw Material | One or Two side PE coated Paper (Popular for Hot and Cold drink Cups) |
| Suitable Paper Weight | 140-350gsm |
| Speed | 65-75 pcs/min |
| Total Power | 6 KW |
| Power Source | 50/60HZ, 380V/220V ( better use 380V, 3 Phase ) or special Power requirement. |
| N.W | 1400Kg |
| Gross Weight | 1500Kg |
| Machine Size(L * W * H) | 2000*900*1600mm |
| Package Size(L * W * H) | 2100*1000*1700mm |
Working Air Source: | Air pressure:0.4Mpa; Air Out-put:0.6m³/minute Need to buy Air Compressor(by user) |
Cup Bottom Heating: | 1side PE paper by heater knurling; 2side PE paper by cool device (circle water) knurling |
Cup Bottom Knurling: | Heater Knurling (if use single PE coated paper) |
| Packing | Seaworthy Wooden Case |
