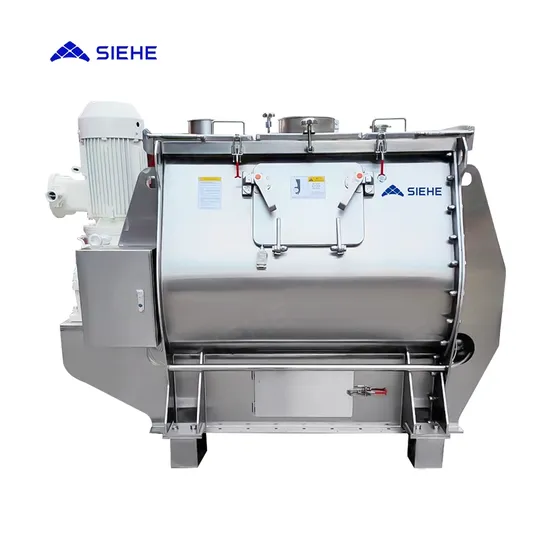

Siehe Factory Price Industrial Horizontal Non Gravity Mixer Chemical Double Shaft Paddle Powder Mixer

Product Description

Product Description
Horizontal Non Gravity Mixer is a Korean-technical late-model mixing equipment with high efficiency, high uniformity, high loading coefficient but low energy cost, low pollution and low crush. Agitators, designed in special angle, rotates in same but opposite direction and shows a nice mixing, smashing, dispersing results. It is widely used in powder-powder, powder-liquid, powder-particles mixing. It is also able to used for materials in different specific gravity and particles in a wide range of sizes.

Materials Specific Gravity	≤3g/cm³
Production Capacity	100-20,000L
Application Industry	Suitable for the mixing of food, pesticide, dye, chemical industry, plastic, lithium battery, ceramic, chemical fertilizer,rubber, mortar and etc.
Appilicable Materials	Powders with fluidity whose specific gravity is up to 5g/cm³, liquid content is up to 20%, such as flavoring, pesticide, reactive dyes, water-free dirt, lithium cobalt oxides battery material and etc.

MIXING AGITATOR STRUCTURE
Twin shaft paddle type mixing agitator;With higher mixing efficiency and uniformity. SMALL BATCH HORIZONTAL NON GRAVITY MIXER
100L design volumeAll stainless steel mixer;With support legs and side operation door. MIDDLE BATCH NON GRAVITY MIXER
500L-1000L Design volumeMachine materials can be customized with SS304/SS316L or carbon steel;
With chain type drive system. LARGE CAPACITY NON GRAVITY MIXER
2000 -20000 L Design volumeTwin shaft reducer for main shaft driving;Feeding ports as well as discharge ports all can be customized.
Rich Experience & Excellent Design Aptitude Products are designed according to the characteristic of raw and finial products materials and manufacturing process(i.e. Pressure requirement, proportion of solid and liquid) to meet the requirements in driving device, operability, leak-proofness and etc. areas. Reliable Driving Device Driving motor uses SIEMENS, ABB and etc international brands products, output torque can be output by direct-combination, chain-wheel combination, hydraulic couplers and etc.
Reducers uses R series umbrella gear reducer (or K series spiral cone gear reducer) with high usage coefficient, large rated torque, high conveying rate, safe, long service life, low noisy, low risk of failure, easy to maintenance and etc advantages. High Efficient Mixing Device Multi-experiments and design for the angle and cross area of blades contributes to a reasonable agitator with high efficient.
Adjustable extension blades are in option, which is easy to change or decrease the gap between the blades and cylinder. It is good for wording condition with large wear. Nice Assistant Component Assistant components are in option, such as: coil steam heating jacket, honeycomb anti-pressure jacket, recycle-medium jacket, real-time sampling valve, high speed fly-cutter, temperature detector, weighting system, dust collecting system, vacuum drying system and etc.
Spray and atomizing device are in option to spray little liquid which will mix the liquid into powders better. Spraying system consists of pressure source, liquid storage tank,spray device.Industrial Applications
