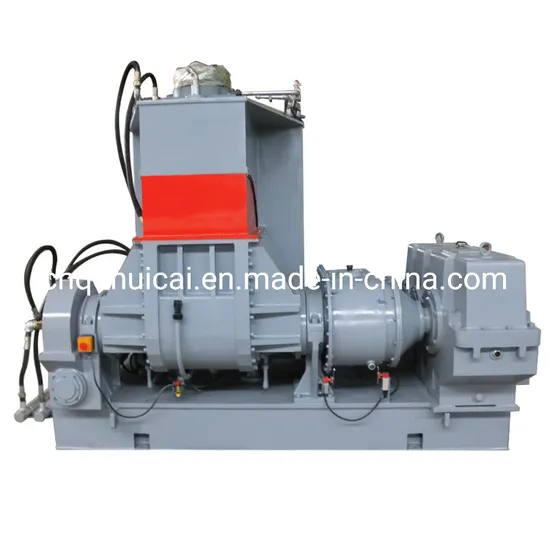

X (S) N-75L Rubber Kneader Machine

Product Description

Why choose our this machine?
1. With completely sealed condition, materials are mixed or plasticized under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent stable quality.
2. Spiral angle and over lapping length of the blades of the rotors are of reasonable design and make the materials to be dispersed uniformly.
3. Surface where is contracted with the machine are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant.
4. Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam-heating effect and fit in with the needs of plastics and rubber processing technology.
5. Feeding from back door on the frame(or separate top door) is convenient ofr continuous process operation in production line. The mixing chamber is able to turn forward by 140 around th front rotors to discharge and is easy for changing pigments and cleaning the chamber.
6. Programmable logic controller (PLC) is adopted in the electric-control system, which has reliable control function and alarm function, and interlock safety-protection function and it is provided with serial interface of net.

type		X(S)N-3×32	X(S)N-10×32	X(S)N-20×32	X(S)N-35×30	X(S)N-55×30	X(S)N-75×30	X(S)N-110×30	X(S)N-150×30
Total Volume of kneading chamer	L	8	25	45	75	125	180	250	325
Total volume of mixing chamber	L	3	10	20	35	55	75	110	150
Driving motoal power	KW	5.5	15	30	55	75	110	185	220
Tipping motor power	KW	0.55	1.1	1.5	2.2	3.0	4.0	5.5	5.5
Tipping angle		135°	140°	140°	140°	140°	140°	140°	140°
Rotational speed of the rotor(front\back)	r/min	0~60,32/24.5	30/23.5	30/25	30/24.5/30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Flow rate of compressed air	Mpa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Flow rate of compressed air	M3/min	≥ 0.3	≥0.5	≥0.7	≥0.9	≥1.0	≥1.0	≥1.5	≥1.5
Pressure of cooling water (rubber mixing)	Mpa	0.2-0.4	0.2-0.4	0.2-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Pressure of heated steam(Plastication)	Mpa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Overall dimensions (LXWXH)	MM	1660 ×960 ×1750	2580 ×1300 ×2280	2630 ×1520 ×2550	3200 ×1900 ×2945	3360 ×1950 ×3050	3760 ×2143 ×31350	4075 ×2712 ×3580	4200 ×3200 ×4000
Weight	Kg	2000	3300	4500	6500	7200	10000	14500
