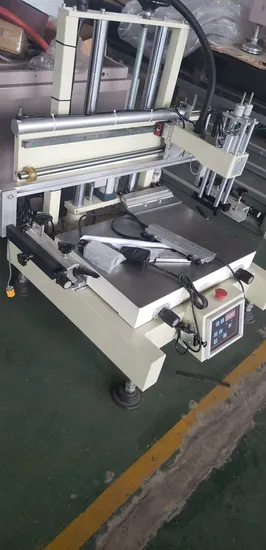

Sheet Paper Screen Printing Machine for Sale

Product Description

Product Description
semi auto pcb silk screen printing press price

Model	XF- 6090	XF-70100	XF-90120
Work table area(mm)	700*1000	800*1100	1000*1300
Max printing size(mm)	600*900	700*1000	900*1200
Max frame size(mm)	900*1200	1000*1300	1000*1300
Small frame size(mm)	450*550	550*650	650*700
Thickness of printing(mm)	0-20	0-20	0-20
Printing speed(pcs/h)	500-1200	500-1200	400-1000
Power(kw)	2.3	2.3	3.7

The Features: 1).The platform is adjustable and moveable, which make it convenient to take the material.
2).vertical structure, printing plate moves up and down vertically, printing stroke is driven by imported electrical components.
3).The screen printer adopts Japanese Mitsubishi PLC control circuit, printing and plate moving up &down are driven by independent Current Source.
4).Screen Printer blade moving up and down is pneumatic controlled, printing stroke is controlled by photoelectric eyes, with independent adjustment.
5).Procedures set three-mode, manual / semi-automatic /automatic settings, the time interval during printing is digital controlled.
6).Independent designed machine head moves up and down, which makes it easy to unload and clean the printing plate, scraper / ink reclaiming blade.
7).Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.

Scope of application:

1)This silk screen printing machine series are widely used in the electronics, advertising, package printing, sports equipment, toys, stationary gifts, metal processing industries.

2)Suitable for printing on all kinds of flat materials, print on metal, glass, wood, paper, plastics, membranes switch, PCB, tempered glass, auto windshield,light guide plate, DC card,nameplate ,also printing on bags,non-woven fabrics, ceramic decals, glazing plate glass, label and panel , refrigerator and air-conditioner decals,plastic sheet, and other products with the material of PVC, which have high requirement in overprinting.
