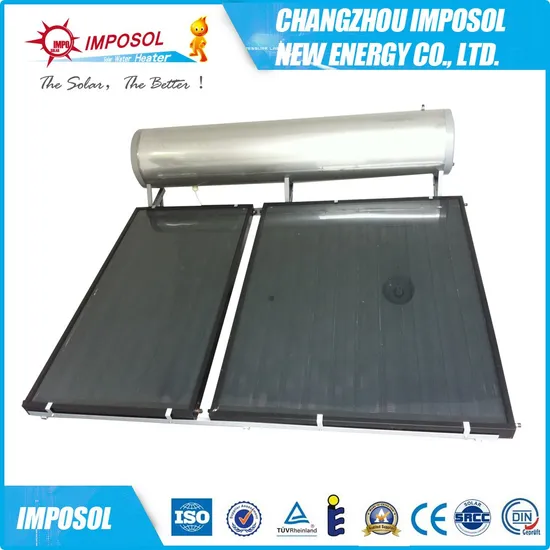

200L Thermosyphon Flow Flat Plate Solar Water Heating with CE
| US$350.00-440.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
IPFT Solar Water Heating
Working Temperature Range
High Temperature
Type
U Pipe
Application
Water Heater, Solar Thermal
Pipe Material
Glass
Brand
Imposol or OEM
Pressure
Pressurized
Antifreezng
-50c
Color
Requirements of Customers
Installation
Freestanding
Model
Ipft-200-GS/Ss
Water Capacity
200
Diameter
540mm/580mm
Coating
Selective Absorbing
Quantity
1/2
Transport Package
Carton
Specification
CE/Solar Keymark/IOS9001/CCC
Trademark
IMPOSOL
Origin
Jiangsu
HS Code
8419191000
Production Capacity
1000/M
Product Description
IPFT seriesCompact direct/indirect flat plate solar water heater
Features
Save 50% to 85%of your water heating energy consumption
Flexible solution with options of collector and tank capacity
Easy to mounting and installation
Worklife over 15 years
Reliable, low maintenance operation
Strong design to withstand the extreme weather condition
Prefect combination with buildings
| model | IPFT-100-GS/SS | IPFT-150-GS/SS | IPFT-200-GS/SS | IPFT-300-GS/SS | |
| flat plate solar collector | quantity dimensions light area coating header insulation | 1 1,030*2,030mm 1*2.00 selective absorbing Cu 22 mm Glass wool | 1 1,030*2,030mm 1*2.00 selective absorbing Cu 22 mm Glass wool | 1/2 1,030*2,030mm 1/2*2.00 selective absorbing Cu 22 mm Glass wool | 2/3 1,030*2,030mm 2/3*2.00 selective absorbing Cu 22 mm Glass wool |
| water tank | capacity diameter operating pressure insulating layer insulation thickness connections inner material outer material | 100L 540mm/580mm 6bar polyurethane 50mm 3/4″ SUS 304/SUS316L color steel/SUS | 150L 540mm/580mm 6bar polyurethane 50mm 3/4″ SUS 304/SUS317L color steel/SUS | 200L 540mm/580mm 6bar polyurethane 50mm 3/4″ SUS 304/SUS318L color steel/SUS | 300L 540mm/580mm 6bar polyurethane 50mm 3/4″ SUS 304/SUS319L color steel/SUS |
| support | material Anti-corrosin use | hot Galvanized steel Powder coated Flat and slope roof installation | |||
| connection pipe | Material Diameter insulating material insulation thickness | flexble stainless steel pipe DN20-3/4″ elastomer rubber with protective PE film 20mm/13mm | |||
