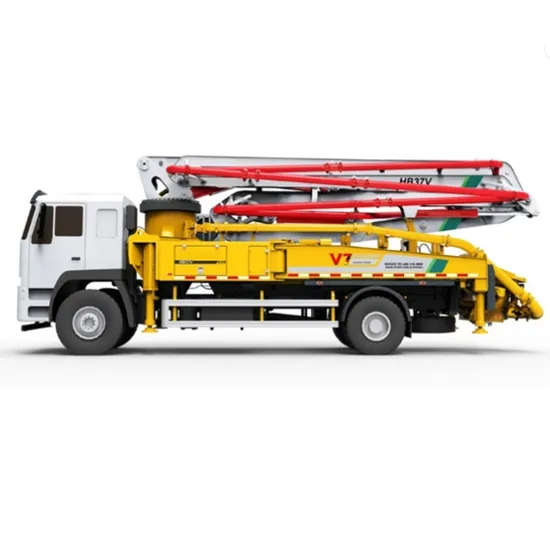

120/80m³ /H Truck-Mounted Concrete Boom Pump 37m Diesel Concrete Pump Truck Hb37V
Basic Info.
Model NO.
HB37V
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
120/80m³/H
Feeding Height
1400mm
Certification
ISO9001: 2000, CE
Condition
New
Driving Type
4×2
Engine
Mc07.31-30
Emission Standard
Euro III
Max.Reach Height
36.5m
Boom Type
5rz
Outrigger Type
X
Chassis Model
Zz5231n521ge1
Wheelbase
5200mm
Max.Power
225t Kw
Theoretical
120/80m³/H
Concrete Pumping Pressure
8.7/13MPa
Reach Height
36.5m
Reach Depth
24.9m
Slewing Radius
32.5m
Transport Package
Comply with Export Packaging Requirements
Specification
9900× 2525× 3750mm
Trademark
Top Brand
Origin
China
HS Code
84295100
Production Capacity
300-500units/Month
Packaging & Delivery
Package Size
990.00cm * 252.50cm * 375.00cm
Package Gross Weight
23000.000kg
Product Description
Product DescriptionXG V7 series truck mounted concrete pump is equipped with ultimately safe boom, lower structure of high rigidity, efficient pumping system of rock valve, hydraulic system of outstanding performance, intelligent control system and easy-wear parts with super-long service life.
1. The adoption of new multi-section boom design optimized by bionic technology effectively reduces placing blind zone and better adapts to placing in high-rise and narrow space.
2. On the basis of the design concept of high rigidity structure, simulative calculation and testing of full-work-condition loading make chassis structure deformation smaller and overall work stability higher.
3. Based on laser guide, coaxial assembly makes piston head's moving track more precise, with smaller resistance and higher efficiency.
4. SCHWING Germany's hydraulic technology quintessence truly realizes fully-hydraulic reversing, in which self-adaption control in fully-hydraulic closed-loop is realized, with no need for any electrical components, more effective, steadier and zero-pollution.
Truck-Mounted Concrete Boom Pump
HB37V Right Hand
Outline dimension(mm)
9900×2525×3750
Driving type
4×2
Product Parameters
| Category | Item | Unit | HB37V | |
| Overall | Outline dimension | mm | 9900×2525×3750 | |
| Overall weight | kg | 23000 | ||
| Chassis | Brand | / | Sinotruck | |
| Model | / | ZZ5231N521GE1 | ||
| Wheelbase | mm | 5200 | ||
| Max.power | kW | 225 | ||
| Emission standard | / | China V | ||
| Pumping system | Theoretical | m³/h | 120/80 | |
| Concrete pumping pressure | MPa | 8.7/13 | ||
| Placing boom | Reach height | m | 36.5 | |
| Reach depth | m | 24.9 | ||
| Slewing radius | m | 32.5 | ||
| Others | Transfer | / | S valve | |
