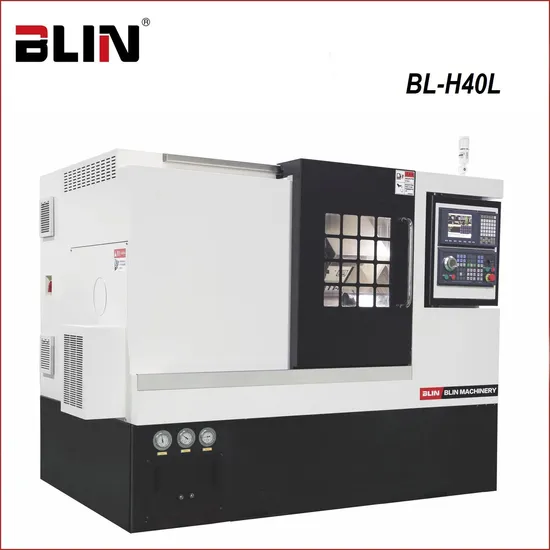

Chinese Blin Slant Bed CNC Lathe for Alloy (BL-H40L)
| US$28,000.00-31,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BL-H40L
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.005mm
Performance Classification
Mid-Range CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Max. Swing Dia. Over Bed
410
Spindle Bore
56
Spindle Speed
4000
Max. Turning Length
400
Transport Package
Plywood Case
Specification
2300*1500*1700
Trademark
BLIN
Origin
Ningbo China
HS Code
8458110090
Production Capacity
480 Uniits/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
high quality slant bed cnc lathe machine with tool turret(BL-H40L)- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand - Adopt 45°integral slant bed design - Adopt ROLLER type linear guideway,super high rigidity - Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability - Base adopt multilayer strengthening rib, ensure bed's strength and stability - Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range - Adopt high precision pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity - Adopt especial structure programmable tailstock, tailstock quill not move, whole tailstock body driven by hydraulic cylinder on linear guideway - Mount 10T hydraulic-servo tool turret
Details:
| Item | Specification | Unit | BL-H40L |
| Capacity | Chuck size | / | 6''/8'' |
| Max. swing dia. over bed | mm | Φ410 | |
| Max. swing dia. over saddle | mm | Φ230 | |
| Max. turning length | mm | 400 | |
| Max. turning dia. | mm | Φ300 | |
| Spindle | Spindle bore | mm | Φ56 |
| Spindle end type | / | A2-5 | |
| Spindle speed | rpm | 4000 | |
| Max. bar through dia. | mm | 44 | |
| Spindle motor power | kw | 7.5 | |
| X/Z axes | X/Z axes linear guideway type | / | ROLLER type |
| X axes travel | mm | 180 | |
| Z axes travel | mm | 400 | |
| X/Z axes rapid moving speed | m/min | 30 | |
| Tool turret | Tool turret type | / | 10T Hydraulic-servo |
| Toolshank size | mm | 25×25, Φ32 | |
| Tailstock | Tailstock quill taper | / | MT4# |
| Tailstock body max. travel | mm | 350 | |
| Accuracy | Positioning accuracy(X/Z) | mm | ±0.005 |
| Repeat positioning accuracy(X/Y/Z) | mm | ±0.003 | |
| Others | Overall size | mm | 2300×1500×1700 |
| N.W. | kg | 2800 |
Main parts list:
| Item | Brand |
| Spindle unit | TAIWAN-KENTURN |
| Tool turret | TAIWAN-MYKUN |
| Ball screw | TAIWAN-HIWIN/PMI |
| Ball screw bearing | GERMANY-FAG |
| Linear guideway | TAIWAN HIWIN/PMI |
| Lubrication system | JAPAN-HERG |
| Rotary oil cylinder&chuck | TAIWAN-AUTOGRIP |
| Main electricity parts | FRANCE-SCHNEIDER |
Standard configuration: -SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-Hydraulic-servo tool turret
-Hydraulic tailstock Optional configuration: -SYNTEC/SIEMENS 828D/FANUC CNC controller
-Automatic chip conveyor
