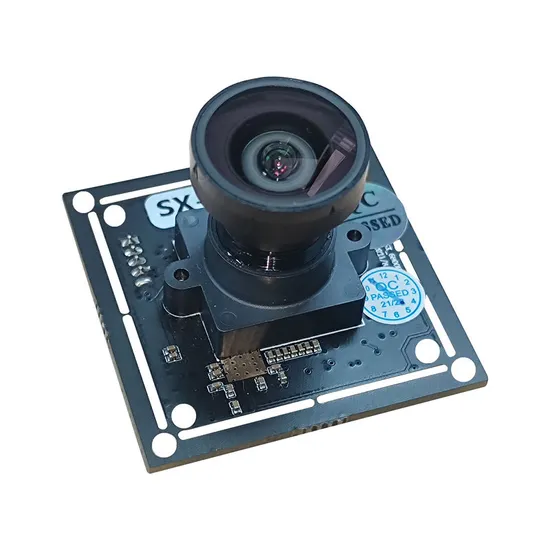

High Definition USB Camera Module with Wide Angle Fixed Focus Lens
| US$55.00-60.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
SX-6800H
Degree of Innovation
Innovative
Applicable Brands
Sonny, Android, iPhone
Certification
CE, UR
Pixel Array
3840*2160
Sensor Size
1/3 Inch
Max. Resolution
8.0 Megapixels/4K
Dimension
32*32mm/38*38mm
Color
Black
Image Format
Mjpg/Yuy
Transport Package
Natural Package
Specification
CE, FCC, RoHS
Trademark
SHIXIN
Origin
Shenzhen, China
HS Code
8525891900
Production Capacity
10000PCS/Month
Product Description
4K High Definition USB Camera Module with IMX415 Sensor and Wide Angle Fixed Focus LensWith 8MP resolution, and an ultra wide angle field of view.
Supports mass operating systems, including Windows 8,10, mac OS 10.10 or above.
The camera also can widely work with PC, Mac, Macbook, Laptop, Desktop, Computers.
Compatible with most video chatting and recording software, like Skype, Zoom, OBS, Face Time, Facebook, YouTube and etc.
Features: -- USB2.0 High Speed Interface -- 8MP high resolution, suitable for document capture -- Advanced Sony image sensor -- Can match with different angle of Lens
Specifications:
| Name | USB Camera Module |
| Product No. | SX-6800H |
| Resolution | 4K (8.0Megapixels) |
| Image Sensor | 1/2.8" CMOS |
| Max. Pixels | 3840*2160 |
| Pixel Size | 1.45μm*1.45μm |
| Compression Format | MJPG/YUY2 |
| Resolution & Frame Rate FOV | 1920*1080 25fps[MJPG] 4fps[YUY2] H: 84°, V:54° 3840*2160 25fps[MJPG] 1fps[YUY2] H: 84°, V:54° |
| SN | >=39dB |
| Dynamic Range | >=72dB |
| Illumination | >=0.1LUX at F1.2 |
| Interface | USB2.0 4-Pin 1.5mm |
| Power Consumption | Max. 1.3 W |
| Power Supply | USB 5V±5% |
| Lens | 3.4mm |
| Scan Method | Progressive scan |
| Interface Speed | USB2.0/480Mb/s |
| Dimension of PCB | 38*38mm / 32*32mm ±5% |
| Work Temperature | -10~60ºC |
| Storage Temperature&Humidity | -20~70ºC/20%~85%RH |
| Support System | WindowsXP/7/8/10//vista/Server/Linux(include UVC)/Android |
