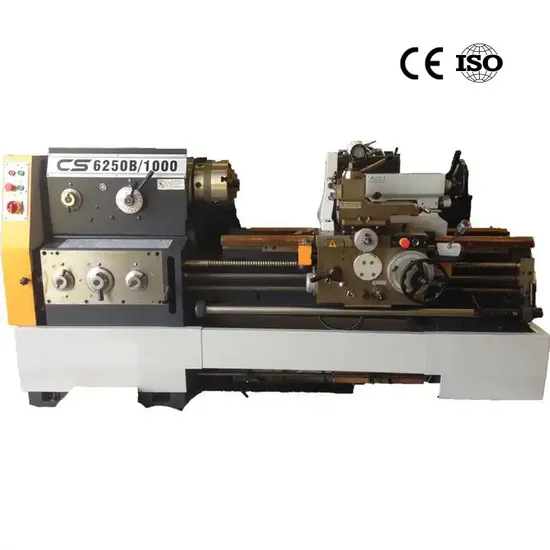

Horizontal Gap Bed Metal Engine Turning Lathe Machine CS6240 CS6250 CS6266
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
CS6240
Type
Horizontal Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
CE
Condition
New
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84589900
Product Description
| Engine Lathe CS6240,CS6250,CS6266 |
| Specifications | CS6140 | CS6150 | CS6166 | CS6150C | CS6166C |
| CS6240 | CS6250 | CS6266 | CS6250C | CS6266C | |
| CS6140B | CS6150B | CS6166B | |||
| CS6240B | CS6250B | CS6266B | |||
| Capacity | |||||
| Swing dia. over bed | 400mm | 500mm | 660mm | 500mm | 660mm |
| Swing dia. over cross slide | 220mm | 300mm | 420mm | 300mm | 420mm |
| Max. swing dia. over gap | 630mm | 710mm | 870mm | 710mm | 870mm |
| Effective length in gap | 240mm (Gap-bed Lathe) | ||||
| Max. workpiece length | 1000/1500/2000/3000mm | ||||
| Max. turning length | 950/1450/1950/2950mm | ||||
| Guideway width | 390mm | ||||
| Headstock | |||||
| Spindle nose | ISO702/III No.6 Bayonet lock; B/C Series: ISO702/II NO.8 Camlock | ||||
| Spindle through hole dia. | 52mm; B series 82mm; C series 105mm | ||||
| Taper of spindle bore | Morse taper No.6; B series 90mm, 1:20; C series 113mm, 1:20 | ||||
| Spindle speeds | 9-1600rpm, 24steps; C series 30-1600rpm, 12steps | ||||
| Feeds and threads | |||||
| Max. travel of compound rest | 145mm | ||||
| Max. travel of cross slide | 320mm | 320mm | 310mm | 320mm | 310mm |
| Z-axis leadscrew pitch | 12mm or 2TPI | ||||
| Section of tool | 25x25mm (1x1") | ||||
| X-axis feed rate | 1.9m/min, 50Hz; 2.3m/min, 60Hz | ||||
| Z-axis feed rate | 4.5m/min, 50Hz; 5.4m/min, 60Hz | ||||
| X-axis feeds | 0.012-2.37mm/rev, 93kinds; C series 0.027-1.07mm/rev, 65kinds | ||||
| Z-axis feeds | 0.028-6.43mm/rev, 93kinds; C series 0.063-2.52mm/rev, 65kinds | ||||
| Metric threads | 0.5-224mm, 48 kinds; C series 1-14 mm, 22 kinds | ||||
| Inch threads | 72-1/8TPI, 48 kinds; C series 20-2TPI, 25 kinds | ||||
| Module threads | 0.5-112πmm, 42 kinds; C series 0.5-7πmm, 18 kinds | ||||
| Diametric pitch threads | 56-1/4DP, 45 kinds; C series 56-4DP, 24 kinds | ||||
| Tailstock | |||||
| Dia. of tailstock sleeve | 75mm | ||||
| Taper of tailstock sleeve | Morse taper No.5 | ||||
| Travel of tailstock sleeve | 150mm | ||||
| Cross adjustment | ±15mm | ||||
| Motor | |||||
| Main motor | 7.5KW (10HP) | ||||
| Rapid traverse motor | 300-370W (1/2HP) | ||||
| Coolant pump motor | 120W (1/6HP) | ||||
| Available voltage / cycle | 220V, 380V, 400V, 420V, 440V, 575V, 600V / 50Hz or 60Hz / 3Ph | ||||
| Dimension and weight | |||||
| Overall dimension (LxWxH) | 263 / 313 / 363 / 463 x 100 x 127/ 135 / 145cm | ||||
| Packing size (LxWxH) | 280 / 330 / 380 / 480 x 115 x 190cm | ||||
| Net weight | 2200/2400/2600/3000kg | 2300/2500/2700/3100kg | |||
| Gross weight | 2400/2600/2900/3400kg | 2500/2700/3000/3500kg | |||
| Standard Accessories | Optional Accessories | |||
| ·3 Jaw chuck | ·Leadscrew guard | |||
| ·4 Jaw chuck | ·Chuck guard | |||
| ·Face plate | ·Taper turning attachment | |||
| ·Steady rest | ·Drill chuck+drill arbor | |||
| ·Follow rest | ·Live center | |||
| ·Coolant system | ·Quick change tool post | |||
| ·Brake system | ·DRO | |||
| ·Working light | ||||
| ·Localizer | ||||
| ·Toolbox & tools |
