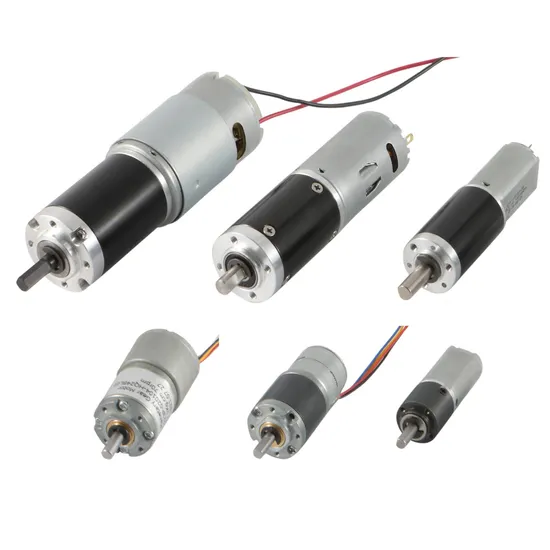

6V 12V 24V Planetary DC Brushless Brush Gear Motor with Multi-Stage Gearbox

Product Description

6V 12V 24V Planetary DC Brushless Brush Gear Motor with Multi-Stage GearboxProduct Description
Parameter:
Gearbox Type: Planetary Gearbox with Straight Teeth
Gear Ratio:1/5~1:1/721 Customize
Matched Motor : Brushless DC Motor ,brush dc motor
Reducer Dia.: 16mm, 22mm,33mm, 28mm, 36mm, 40mm
Application: electric opening and closing awnings, Automatic Shutter
Drawing:
16mm
22mm
28mm
32mm
36mm
42mm
Specification:
DC Motor + Gearbox Specifications
16mm

Reduction ratio	1/4	1/14	1/16	1/19		1/29	1/53	1/62	1/72		1/84	1/104	1/128	1/157		1/231	1/316	1/370	1/455		1/561	1/690	1/1014
12V	Rated torque(g.cm)	21	60	70	82		120	193	220	260		300	380	460	550		700	950	1100	1350		1700	2000	2400
	Rated speed(rpm)	1330	430	377	315		205	117	100	85		73	59	48	39		26	19	16	13.5		11	8.9	6
24V	Rated torque(g.cm)	31	85	103	120		180	284	330	380		450	560	690	850		1000	1400	1600	2000		2000	2400	2400
	Rated speed(rpm)	2400	760	669	555		365	208	170	150		130	105	85	69		47	34	29	24		19.5	15.9	11
	Rotation direction	CW
	Length(L-mm)	15.05				18.7					22.35					26					29.65

22mm

Reduction ratio	1/4	1/14	1/16	1/19	1/53	1/62	1/72	1/84	1/104	1/198	1/231	1/270	1/316	1/370	1/455	1/742	1/1014	1/1249	1/1621
12V	Rated torque(g.cm)	77	215	250	295	695	810	950	1100	1370	2100	2500	2500	2500	2500	2500	3000	3000	3000	3000
	Rated speed(rpm)	1450	470	405	348	127	109	93	79	64	34	29	25	22	19	15.5	9.5	7.4	6	4.6
24V	Rated torque(g.cm)	77	215	250	295	695	810	950	1100	1370	2100	2500	2500	2500	2500	2500	3000	3000	3000	3000
	Rated speed(rpm)	1600	515	450	384	140	120	103	88	71	37	32	28	23.5	21	17.5	10.5	8	6.6	5
	Rotationdirection	CCW
	Length(L-mm)	14.4	18.05			21.7					25.35						29

28mm

Reduction ratio	1/5	1/14	1/19	1/27	1/35	1/51	1/71	1/100	1/139	1/189	1/264	1/516	1/721	1/939
12V	Rated torque(Kg.cm)	0.32	0.75	1	1.4	1.9	2.4	3.3	4.7	6.6	7.4	10	10	10	10
	Rated speed(rpm)	1000	375	270	193	148	102	73	52	37.3	27.5	19.7	10.5	7.5	5.7
24V	Rated torque(Kg.cm)	0.38	0.9	1.2	1.7	2.3	2.8	4	5.6	7.8	8.8	10	10	10	10
	Rated speed(rpm)	990	370	265	191	147	101	72	51.5	36.9	27.2	19.3	10.4	7.4	5.7
	Rotation direction	CCW
	Length(L-mm)	24.5	30.9				37.3				43.7

32mm

	Reduction ratio	1/5	1/14	1/19	1/27	1/51	1/71	1/100	1/139	1/189	1/264	1/516	1/721
12V	Rated torque(Kg.cm)	1.0	2.4	3.3	4.7	7.6	8	10	10	12	12	12	12
	Rated speed(rpm)	950	359	257	183	97	71.5	52	39	29	21	11	8
24V	Rated torque(Kg.cm)	1.0	2.3	3.2	4.5	7.3	8	10	10	12	12	12	12
	Rated speed(rpm)	990	375	268	192	101	74.5	54	40	29.5	22	11.5	8
	Rotation direction	CCW
	Length(L-mm)	22.1	28.5			34.9				41.3

36mm

Reduction ratio	1/5	1/14	1/19	1/27	1/35	1/51	1/71	1/100	1/139	1/189	1/264	1/516	1/721	1/939
12V	Rated torque(Kg.cm)	0.32	0.75	1	1.4	1.9	2.4	3.3	4.7	6.6	7.4	10	10	10	10
	Rated speed(rpm)	1000	375	270	193	148	102	73	52	37.3	27.5	19.7	10.5	7.5	5.7
24V	Rated torque(Kg.cm)	0.38	0.9	1.2	1.7	2.3	2.8	4	5.6	7.8	8.8	10	10	10	10
	Rated speed(rpm)	990	370	265	191	147	101	72	51.5	36.9	27.2	19.3	10.4	7.4	5.7
	Rotation direction	CCW
	Length(L-mm)	24.5	30.9				37.3				43.7

DC Motor Specifications

Rated volt(V)	Rated torque(g.cm)	Rated speed(rpm)	Rated current(mA)	No load speed(rpm)	No load current(mA)	Weight(g)
12	250	4930	<=1600	6000	<=250	220
24	240	5150	<=750	6000	<=130	220

The above information is just for your information. We can customize specification and size as your requirement.
