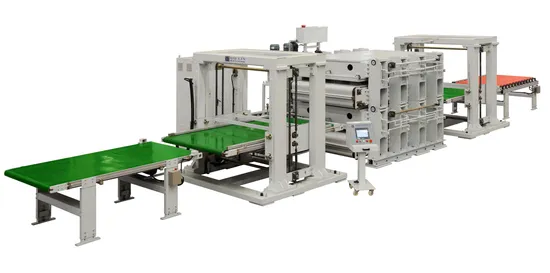

Qiulin Loading and Unloading Wood Door Hot Press with Hierarchical Belt

Product Description

1.	Belt conveyor	BZY1111/24/850
	Belt length	2400mm
	Belt width	1100mm
	Working height	850mm(Adjustable)
	Installation power	1.5kW
	Conveying speed	10-20m/min
	Installation power	1.1kW
2	Loader	BZX124x8/1990
	Conveying width	1350mm
	Conveying length	2710mm
	Layer	1
	Loading way	width direction, automatically, frequency control
	Speed of conveying	15-25m/min
	Installation power	1.1+4kW
	Size(LxWxH)	2830x2130x2244mm
3	Hot press	BY694x8/20(2)
	Total pressure	2000kN
	Rated pressure	20MPa
	Platen No. & Size	4-2700x1370x42mm
	Working layer	2
	Opening	2-100mm
	No. & diameter of oil cylinder	(8-Φ125mm)x2
	Heating way	Electric heated with thermic oil
	Opening way	Automatically
	Loading way	Length direction, automatically, frequency control
	Installation power	4x3+48+0.75x3=66.25kW
	Conveying speed	10-20m/min
	Working temperature	120ºC
	Size(LxWxH)	3210x3340x2946mm
4	Unloader	BZX124x8/1990
	Conveying width	1350mm
	Conveying length	2710mm
	Layer	1
	Loading way	width direction, automatically, frequency control
	Speed of conveying	15-25m/min
	Installation power	1.1+4kW
	Size(LxWxH)	2830x2130x2244mm
5	Roller conveyer	BZY3611/24/900
	Conveying length	2400mm
	Conveying width	1100mm
	Working height	900mm
	Conveying speed	15-30m/min(Frequency control)
	Installation power	1.5kW

Advantage:
1.Cylinder:It is worked through excellent CNC precision machine tool.
2.It uses high quality oil seals to make sure good sealing.
1.Delivery and Package:
-We will take care of your machinery packages well.
-Our workers will make sure your machine clean before package.
-We will add stretch film for the whole machine and spare parts for delicate protection.
-We will make export standard strong wooden box case package as your request for the knocked down parts of machines.
2.Guarantee:
The main machine is guarantee for 12 months and the electric elements is guaranteed for 6 months.Within guarantee under normal using and maintenance.If the machine has something problem because of our quality fault you will get spare part for free. After the guarantee, you will get the cost price for accessories.You will also get technical support and service all the time.
3.Technical Support:
-Technical support by Phone,Email,Wechat 24 hours online
-We provide English version manual.
-Engineer available to service machinery overseas.
4.After sales service:
Our machine is installed and tested well before delivery.You can operation the machine immediately after received machine.If you don't know how to use the machine,we will offer you cost training until you can use machine freely.And if there is still any question, please contact us by Email, Phone, and we chat online service at any time.
