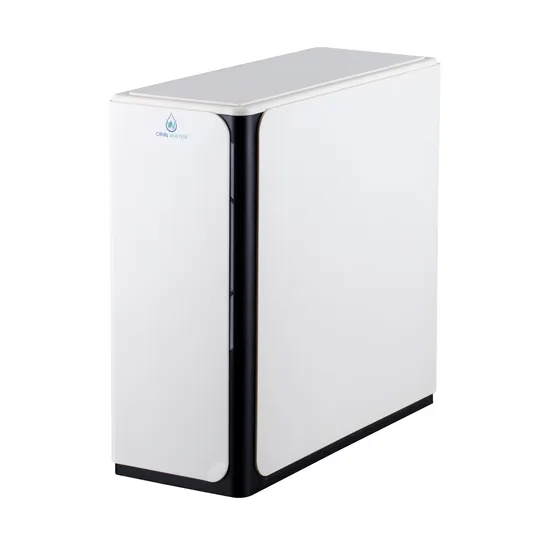

Large Flow 800gpd RO System Pure Water Filtration System

Product Description

Reverse Osmosis RO Water Purifier

MODEL NO.	RO-200G-KC302
20/40/40HQ
DESCRIPTION	Purified water capacity:200GPD
	3 Stage filters:PPC+CTO+150GPD RO
	18 senconds automatic flush
	Fitting Type:Quick Connector
	Pressure Tank:1.5G
	200GPD RO membrane
	Faucet:GF-8(optional)
	Booster pump:24VDC transformenr 110v/220v-24VDC
	product size:460x180x430mm
	Net/gross weight:9.5/10kgs
	Packing Dimension:50.5x35x48.5cm

GENERAL INTRODUCTION OF REVERSE OSMOSIS WATER SYSTEM
THE FUNCTION OF RO SYSTEM CORE PARTS
First Stage(PP Sediment Filter):To remove sand,silt,dirt and rust particles in water.
Second Stage(Granular Activated Carbon Filter):To absorb the chlorine,organic matter,odor,smell turbidity.
Third Stage(Block Activated Carbon Filter):To absorb the chlorine,organic matter,odor,smell turbidity,and suspending particles.
Fourth Stage(RO membrane):It is made of the semi-permeable membrane with the 0.0001 micron filtration precision for separating and removing the bacteria,heavy metal,salt bad mineral substance and other dissolved matter and chemical drug in the running water.
Fifth Stage(Post Inline Carbon Filter):To absorb the odor,and adjust the taste.
OPTION:SIXTH STAGE
(Mineralized ball or Aluminite):To improve the quality of RO water by the far infrared radiation and releasing essential mineral substance.
(Ultraviolet Sterilizer):It utilizes germicidal ultraviolet light to quickly and reliably disable bacteria,viruses and other micro-organisms present in water.
(Magnetizing Filter):The RO water passes through the magnetic field,breaking the original polymer macromolecules so that they become many single active small molecules,the alkaline alkalescent small molecules water is healthful for human body.
