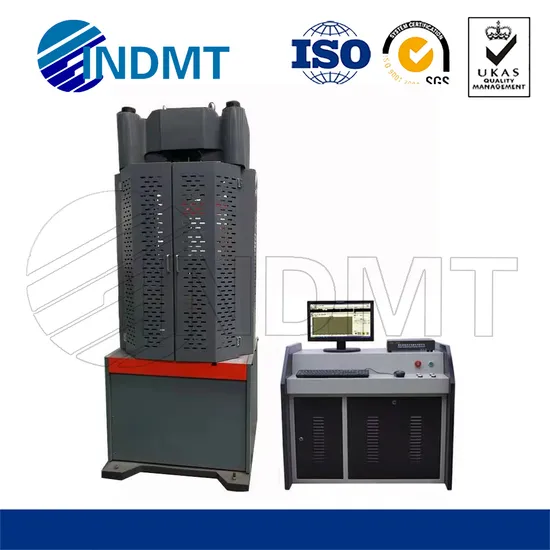

Steel Pipe Universal Electronic Tensile Testing Machine

Product Description

Product Description A key enterprise in the national instrumentation industry. Thirty years of professional experience in testing machines, with an annual output of 1,000 hydraulic universal testing machines, 1,000 pressure testing machines, and 600 electronic universal testing machines. Patented technology, good product quality, the most stable and reliable first brand of Chinese testing machine. The service guarantee is good, the quality guarantee is two years, the only in the industry. The newly purchased product has no reason to exchange or return within three months, which is the only one in the industry. Has won the title of high-tech enterprises in Shandong Province, IOS9001 international quality system certification. Nearly 30,000 test machines are widely used in highways, railways, electric power, water conservancy, construction engineering and universities, scientific research, machinery, metallurgy, casting, non-ferrous metals, plastics, rubber, wires and cables, pressure vessels, composite materials and other industries. Since its establishment, the company has developed five series of more than 150 varieties of testing machines and obtained many national patents. The products are distributed in various domestic provinces and regions, and exported to Brazil, South Korea, Pakistan, Malaysia, Indonesia, South Africa, Angola, Mexico and other international markets.
Capacity

Maximum test force(kN)	2000
Test machine level	First
Test force measurement range	4-100%
Test force resolution	1/500000 of full scale
Relative error of test force	±1%
Relative error of displacement indication	±1%
Relative error of deformation indication	±1%
Gach rate range	120N/s-12Kn/s
Maximum distance between stretching chucks	850
Maximum compression space	≥600mm
Piston stroke (mm)	200
Four Upright cylinder diameter	100 mm
Two screw diameter	120mm
Round specimen clamping range (mm)	Φ6-Φ65mm
Clamping method	Hydraulic clamping
size	1250*1000*3500mm
Oil source console size	1100*800*1000mm
Total motor power	2.1 kW
Total weight	Around 8000 kg

Our Function The IND-2000DT microcomputer-controlled electro-hydraulic servo tensile testing machine is mainly used for the mechanical properties tests of tensile, compression, bending and shearing of metal materials. This machine adopts double space oil cylinder under structure. Among them, there is a compression space between the test bench and the lower crossbeam, which can realize the compression, bending, shearing and other tests on the sample; the lower crossbeam and the upper crossbeam are the tensile space, mainly for the tensile test of the sample. The test space is automatically adjusted by rotating the lead screw to move the lower beam up and down. The closed-loop servo control system composed of electrical controller, servo pump technology, pressure sensor, displacement sensor, extensometer and computer can automatically and accurately control the test process and automatically measure test parameters such as test force, displacement and deformation.
The computer measurement and control system of the testing machine can accept the test information, sample number, sample size and other sample information downloaded from the upper computer. The operator manually confirms the sample number according to the sample sequence downloaded by the upper computer, then clamps the sample and selects the corresponding test program to test. The machine can automatically measure ReH, ReL, Rp, Rt, Rm, Agt, A , Ae and other related mechanical data are directly stored, printed test reports or uploaded to the superior computer through the network. The test software can create a project (can be created according to different steel grades: control type and test conditions) and store it permanently; the operator of the test machine automatically loads according to the control type and test conditions of the steel grade, without requiring more settings and Operate, you can test, easy to operate.
Packaging & Shipping

After Sales Service
INDMT's products implement worldwide joint warranty services. Regardless of where you buy and use our product, you can contact our company by calling the maintenance service hotline,we promises to respond quickly and solve the fault fast.
In order to meet the needs of the market and customers and better serve the customers, INDMT is equipped with trained technical service engineers with professional machine tool knowledge in major regions to provide professional after-sales service. And established 24-hour response service call platform, monitoring all service calls throughout the service quality is trustworthy!

FAQ 1.How can I choose the most suitable machines ?
A: Please tell me your workpiece,we can choose the most suitable machine model for you.
2.What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3.What's the Payment Terms ?
A : T/T ,30% advance payment after order ,70% balance payment before shipment ;
Irrevocable LC payment at sight .
4.What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
5.How long is the production time
A:The production time for Non-standard CNC machine is 50-60 days
