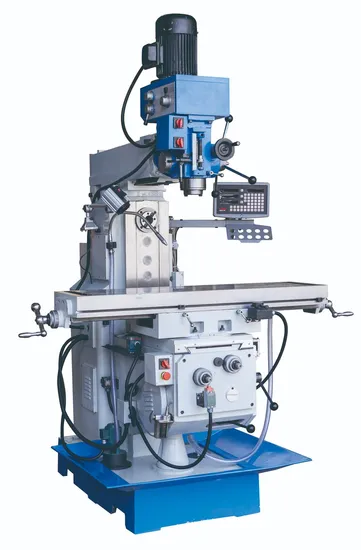

Universal Gear Turret Vertical Drilling and Milling Machine
Basic Info.
Model NO.
ZX6350C
Type
Knee-and-Column Milling Machine
Object
Hardware
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Table
1120X280mm, 1250X360mm
Transport Package
Wooden Case
Specification
X6323, X6325
Trademark
Allway
Origin
China
HS Code
84595900
Production Capacity
2000PCS/Year
Product Description
Product DescriptionUniversal gear turret vertical Milling Machine (Zx6350c)
Gear driven; X axis auto feed
This model pass CE standard.
ZX 6350C is a kind of economic-type drilling and milling machine, light and flexible, is used for mechanical maintenance, non-batch parts processing and components manufacturing.
The vertical head swivels to both sides (+-) 90
Standard accessories. 3-axis position indicator, 2 milling arbor (22, 27mm), collet set, drill chuck, mill chuck, reduction sleeve, Work light, coolant. Optional Accessories: DRO on X, Y, Z-- Clamping kit Universal divind head Rotary work table.
| Specification MODEL | Unit | Technical parameters ZX6350C |
| Spindle taper | M. T. 4 | |
| Distance vertical spindle to table | mm | 100-460 |
| Distance horizontal spindle to table | mm | 0-360 |
| Distance spindle to column | mm | 200-500 |
| Spindle seeds range | r/min | (8 steps)115-1750(vertical); (12 steps)40-1300(horizontal) |
| Automatic Feed Series sleeve | mm | 120(vertical) |
| Table size | mm | 1120 × 280 |
| Table travel | mm | 600/250/360 |
| Distance horizontal spindle to arm | mm | 175 |
| Table feeds range(x/y) | mm/min | 12-370(8 steps)(max. 540) |
| T of table (no. /width/distance) | mm | 3/14/63 |
| Main motor | kw | 0.85/1.5(vertical); 2.2(horizontal) |
| Motor of table power feed | w | 370 |
| Coolant pump motor | w | 40 |
| N. W/G. W. | kg | 1250/1450 |
| Overall dimension | mm | 1660 × 1340 × 2130 |
