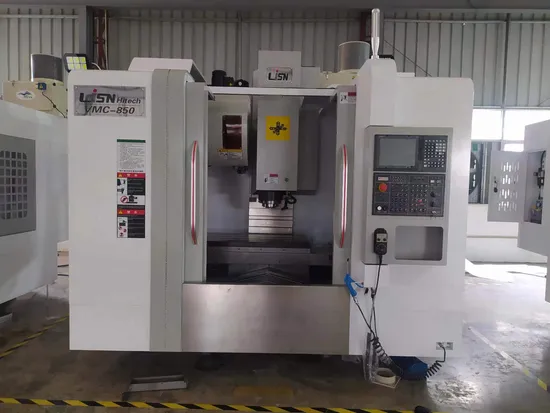

3 Axis CNC Milling Machinery Vmc850 CNC Machine with Fanuc Controller

Product Description

Product Description
The 3 axis VMC-850 is a high performance CNC vertical machining center developed and manufactured by our company. The machine has the characteristics of high rigidity, high speed and high precision and has more advantages on operation and capabilities compared with similar products. All castings of the machine have been secondary tempered to provide excellent rigidity and stability for the whole machine. This machine applied with high rigid C design on structure, it also has been done with reinforcement on machine ribs.All the contact faces have been scraped manually, which guarantees the durability of accuracy. X/Y axes apply with two types of rolling guide way: ball bearing and roller guide way, which is optional that customer can choose base on customer's needs. Z axis applies roller guide way, which enables the machine to be with high rigidity, low noise, and small friction. The machine equips with an air tank, and the water can be drained out manually. Spindle is connected directly, and the highest speed can reach 10000RPM, which make this machie as a good choice for machining some complex parts with high efficiency.

Main Features
Mitsubishi M80 control system High speed and precision spindle Excellent chip flushing system Excellent structure design High rigidity of the whole machine Excellent worktable size: 510mm*1000mm Excellent load capability of worktable: 500kg Detailed Photos
Product Parameters

Item	Specifications	Unit	Product Parameters
Travel Range	X/Y/Z Axis Travel	mm	850/500/500
	Distance From Spindle Nose To Worktable	mm	320-820
	Distance From Spindle Center To Column Track	mm	570
	Rail Type	type	Linear Track
Control System	Control System	type	Fanuc 0i
Axis	3 Axis	type	-
Worktable	Worktable Size	mm	1000x510
	Max Load Bearing Of Worktable	kg	500
	Distance Between T Slots	mm	5x18x100
Spindle	Spindle Hole Taper	type	BT40
	Spindle Speed Range	rpm	12000
	Spindle Drive Mode	type	Direct Driven
Feedrate	X/Y/Z Rapid Feed Speed	m/min	36/36/36
	Max Cutting Feed Speed	mm/min	10000
Tool Magazine	Tool Change Mode	Type	Arm Disc
	Tool Shank	/	BT40
	Tools Magazine Capacity	pcs	24
Accuracy	X/Y/Z Position Accuracy	mm	±0.003
	X/Y/Z Re-Position Accuracy	mm	±0.005
Power requirements	Power Demand	KVA	25
	Barometric Demand	kg/cm²	≥6
Machine Dimension	Machine Dimension	mm	2730x2912x2970
	Machine Weight	kg	5000

Company Profile
Lizhun Machinery Co., Ltd. is a company focused on innovation, development and production of CNC machining centers and CNC lathes. Adhering to the spirit of innovation and excellence, the company has provided many famous enterprises at home and abroad with extremely superior machines in performance, precision and quality. In the future, Lizhun will continue to maintain the spirit of innovation and excellence to provide strong and lasting support for the processing industry, and provide excellent processing machines for 5G, aviation, automobile and other industries.
Lizhun Machinery Co., Ltd. is located in Dongguan, Guangdong province. The product exhibition hall is located in Songshan Lake, Dongguan City, with beautiful scenery and elegant working environment. The factory is located in Dalingshan, with complete facilities and experienced staff. The staff has many years of experience in innovation, development, assembly and production, which ensures that each machine has extremely outstanding quality and performance when it leaves the factory.
The factory covers a large area and has multiple production lines to ensure production capacity and supply capacity. Excellent capacity and supply capacity can ensure that customers can receive the machine within the agreed time which can avoid a series of problems caused by insufficient capacity.

FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM

2. Are you a manufactuer or trading company?
A:We are the manufacturer

3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?
A: FOB shenzhen.

5. What's your payment term?
A: T/T OR L/C at sight.
