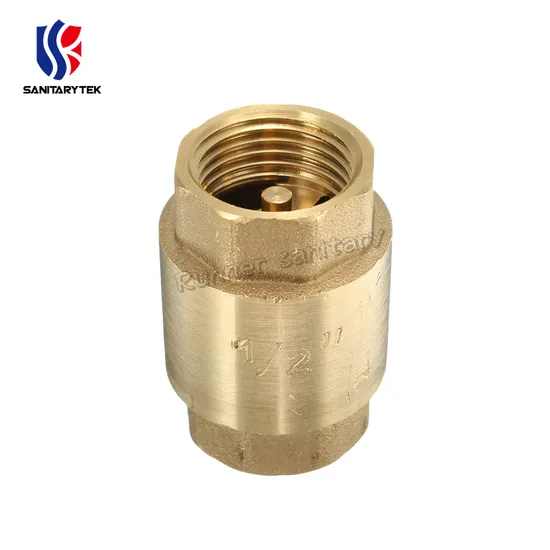

Brass Non Return Spring Check Valve with Brass Core

Product Description

RUNNER Sanitary is established in 1998, with rich experience in water and heating system business, SANITARYTEK is our registered brand. One-stop station, including full line of brass gate valve, brass ball valve, check valve, angle valves, bibcock, water-meter valve, radiator valves, faucets, hose, shower, fittings and accessories etc.
Product Description Brass Universal Spring Check Valve with Brass Core (V24-001B)

Product name	Brass check valve with brass core
Material	brass body and core
Brand	OEM & ODM
Item No.	V24-001B
Thread	BSP or NPT
Surface	Natural brass
Size	1/2" to 4"
Testing pressure	100% tested with 0.6MPa - 0.8MPa by air
Connection	Female thread x Female thread
Samples time	2 days - Current type 15 days - New mould
OEM Acceptable	Yes
Place of origin	Zhejiang,China(Mainland)

Brass forged body, brass disc/ABS disc, Brass bonnet, S/S filter is available for vertical check valve
The valve is suitable for flow non-retuning use. For pump and water pipes instruction
1. Application: Low pressures on condition that non aggressive fluids are used
2. Material: Forged brass (CW617N, CW614, CW602N, ASTM C37700)
3. Size: 1/2''-4''
4. Thread Wtandard: ISO7/1, ISO228, NPT, DIN2999
5. Delivery Time: Within 30~45 days after received payment.
6. Payment Terms: T/T (30% payment in advance, the balance is paid at the sight of B/L copy).
7. Package: Inner box, outer carton, then by pallet Technical Specification:

Working Pressure	1.6Mpa
Tested Pressure	2.0Mpa
Working Medium	Water, oil, gas
Working Temperature	-20° C≤ T≤ 150° C

View more products,you can click product keywords...

Main Products
Brass ball valve	Check valve	Brass gate valve
Floating valve	Lockable ball valve	Radiator valve
Angle valve	Faucet	Floor drain

Any interests or more details, please click here to contact us.
Your message will be answered within 8 hours. Company Profile
FAQ
Q1: When can I get the quotation lf l send an enquiry at your website?
We usually quote or reply within 5 minutes-6 hours after we get your inquiry.
Q2: What is your MOQ? Can we order small amount ?
Usually our MOQ is 1,000pcs.Trial orders and further requests can Be negotiated.
Q3: How can we get a sample to check your quality?
After price confirmation, you can require samples to check our quality. If you need the samples, we will charge for the sample cost. But the sample cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q4: Can you do the design for us?
Yes, we have a professional team with rich experience in manufacturing. We are able to supply customized sizes, grades of material, and coating. We also could supply the package according to your request the sample cost. But the sample cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.
Q5: How long can I expect to get the sample?
After you pay the samples charge and send us confirmed files, the samples will be ready in 1-5 days for the regular specification. Or it will take about 15 days to produce new samples. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you don't have an account.
Q6: What is your payment term?
Normally,T/T 30% down payment, 70% balance to be paid before shipment. or Irrevocable L/C at sight.
Q7: What about the lead time for mass production?
Usually will be around 30~35days.
