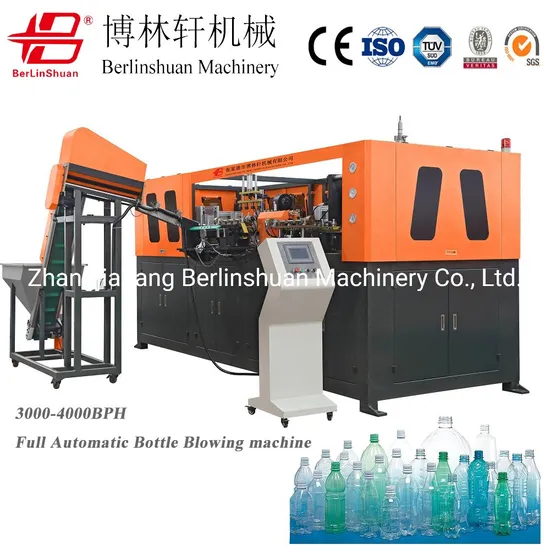

Automatic Spring Drinking Water Juice Carbonated Drink Beverage Liquid Plastic Glass Bottle Can Blowing Machine
| US$10,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BLX-4-2L
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Capacity
3000-4000bph
Bottle Volume
250-2000ml
Touch Screen
Mitsubishi(Japan)/Willen(Taiwan)/Siemens(Germany)
PLC
Mitsubishi(Japan)
Electronic Control Keys
Mitsubishi(Japan)/Siemens(Germany)
Photoelectricity
Autonics (Korea)
Contactor
Schneider (France)/Siemens(Germany)
Air-Actuated Component
Airtac (Taiwan)
Transport Package
Stander Wooden Packing
Specification
4500x1600x1900mm
Trademark
Berlinshuan
Origin
Zhangjiagang, China
HS Code
8477300000
Production Capacity
100 Set/Year
Product Description
Full Automatic Blowing Bottle MachineFlow chart.
High Pressure Air Compressor -- Air Tank -- Air Fiter -- Air Dryer -- Low Pressure Air Compressor -- Air Fiter -- Full Automatic
Blow Moulding Machine -- Mould -- Water Chiller
Bottle type specification | Cavity | 4 |
| Theory output (PCS/HR) | 3000-4000 | |
| Max. volume (L) | 2L | |
| Bottle mouth maximum overall diameter (mm) | 28-38mm | |
| Bottle biggest diameter | 100mm | |
| Bottle maximum height | 330mm | |
Power specifications | Light tube quantity | 32pcs |
| Light tube power | 1.25kw | |
| Maximum heating power | 40kw | |
| All electric machine installation | 43kw | |
| Actual consumption | 21.5kw | |
Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1600Ltr/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 3000 Ltr/min | |
Frozen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10°C | |
| Consumption | 8000kcal/hr | |
| Frozen water flow | 88Ltr/min | |
| Machine specification | Size of the machine | 4.5x1.6x1.9 (m) |
| Weight of the machine | 3.5ton |
Main features.
1 - Stable performance with advanced PLC.
2 - Conveying preforms automatically with conveyor.
3 - No contamination and low noise with the air cylinder to drive the action not the oil pump.
4 - Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into
three parts in the air pressure diagram of the machine.
5 - Strong clamping force with high pressure and double crank links to lock the mold.
