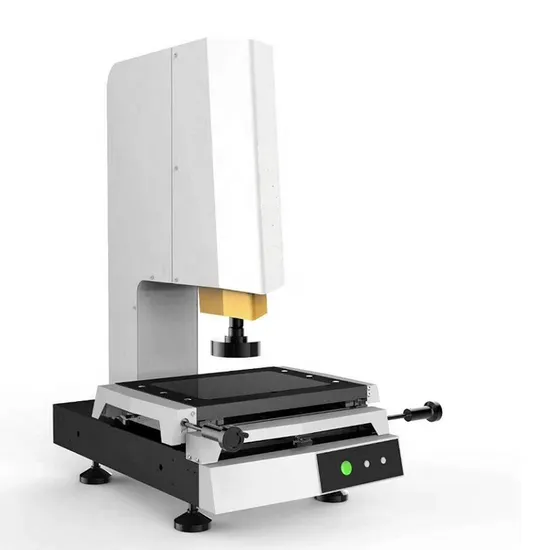

Boshida Customized Auto Focusing 300X200mm Mrasure Range Image Measurement Microscope

Product Description

Product Description

Measure range	Measurement range(Optional): 400*300mm, 300*200mm, 200*100mm Z Effective space 250 mm. Focusing stroke: 200 mm Working distance 90 mm.
Driver system	Manual Optional: Motorized
Accurancy	Optical resolution: X / Y / Z axis 0.001 mm (1 um). Measurement accuracy: <= 3 um + L / 200. Repeated accuracy: <= 3 um
Image system	Zoom optical lens (0.7X - 4.5X) Magnification: 14X-200X
Illumination system	Surface light: LED cold light source, brightness zone and intensity adjustable. Bottom light: LED cold light source, long service life, brightness adjustable.
Software	Measurement across field of view. Report to Excel or Word. Save image, record video.
Size and weight	Glass Worktable size: 350*250mm. Marble top size: 460*360mm. Weight: About 150kg
Power supply	AC100-240V, 50/60Hz

ABOUT US
FACTORY EXPERIMENT FAQ FAQ Q1 How can you do sample testing? A1 We can suggest microscope according to applications of user. We had thousands of sucessful cases.If user is not sure of the microscope image quality, user can send us samples for testing. We will send pictures to user. If user is not satisfited with it,don't need to buy it.
Q2 What kind of customization you can supply?
A2 Our microscope have standard version and optional parts. User can choose configuration according to requirement and budget.For Industry using, there are varity of requirements. We can supply/produce microscopes and correct solutions according to requirements.
Support OEM & ODM
1. Free sample testingWe can test sample of user and help user to choose the most suitable microscope according to applications and requirements. 2. Online trainning. 3. Life time technical service. 4. Free SolutionsWe can suggest solutions according to applicatins and requirements. 5. CustomizedWe can customize products according to applicatins and requirements.
Warranty
1). We provide one year warranty for whole machine, three month for consumable spare parts.
2). We will cover all cost due to quality problem during the warranty period.
3). For those problems caused by improper operation or inappropriate protection or maintenance, we will repair free of charge, but for damage spare parts, we will only charge at the cost price.
4). We provide the whole using life service free of charge, but for the products that exceeds warranty period, we will only charge the replacement at cost price.
