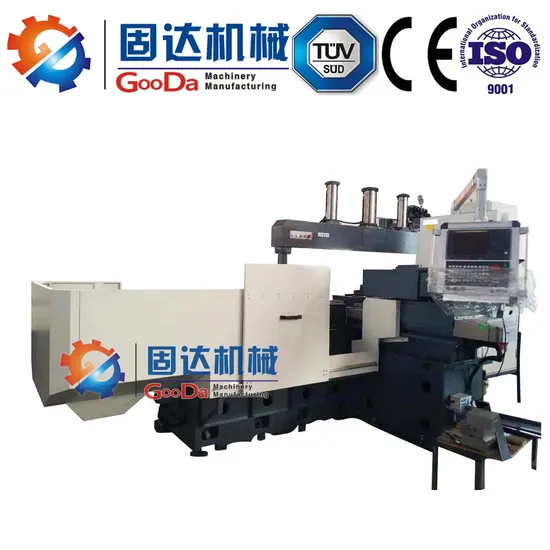

Fanuc System CNC Two Head Milling Machine OEM-Machining Plate Double Head Milling Machine Manufacture-Finished Plate Duplex Milling Machine Purchase
| US$50,000.00-180,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TH-1500NC
Structure
Horizontal
Milling Cutter Type
Angle Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Cutting Capacity
40-1500mm
Certificate
Ce & ISO9001
Capacity
Can Be Customized
Transport Package
Steel Box
Specification
4.2*4.2*2.8
Trademark
GooDa Manufacturer
Origin
Dongguan
HS Code
84596190
Production Capacity
600
Product Description
TH-1500NC Fanuc system cnc two head milling machine OEM-machining plate double head milling machine manufacture-finished plate duplex milling machine purchaseMain Function:
CNC system once setting and automatic guides where work-piece loading place, automatic measurement, four- sides process, which can reduce working strength of operator and increase Productivity, maintain high accuracy for dimension, squareness and parallelism.
| Main Specifications of CNC DUPLEX MILLING MACHINE TH-1500NC | ||
| Items | Name | Specification |
GooDa CNC DUPLEX MILLING MACHINE TH-1500NC | TH-1500NC | |
Cutting capacity | Control axis number | 4 |
| Cutting capacity mm | 2*1.5 | |
| Cutting width mm | (40-500)-(40-1500) | |
| Worktable | Dimensions mm | 400*400+400*1000 |
| Max loading weight kg | 2800 | |
| Spindle | Spindle speed(Infinitely variable speeds) rpm | 50-500 |
| Spindle power kw | 2*9 | |
| Spindle taper | NT50 | |
| Cutting diameter mm | 200 OP 250 | |
| X axis | X/Y/Z axis motor power kw | 2.5/2.5/3.0 |
| Y axis | X/Y/Z Max feed speed m/min: | 10000/10000/10000 |
| Z axis | X/Y/Z Max cutting speed | 8000/8000/8000 |
| Accuracy | Squareness mm/300mm | 0.015 |
| Accuracy for dimension mm/300mm | 0.015 | |
| Tank capacity | Hydraulic oil tank L | 60 |
| Lubrication oil tank L | 3 | |
| Power | Power | AC380V/200 45KVA |
| Net weight | Machine net weight KG | 13000 |
Main part of CNC DUPLEX MILLING MACHINE TH-1500NC
| Sort | Name | Quantity | Origin | Remark |
| Machinery | Worktable ball screw | 3 | Taiwan HIWIN | Steady transmission,High accuracy, Wear-proof |
| Guide rail | 3 | Taiwan HIWIN | Good bearing Strong stability | |
| Main Spindle (Horizontal) | 2 | Taiwan POSA | Low noise, high strength, Taiwan famous brand | |
| Flexible stainless steel plate shield of worktable | 2 | Domestic | High strength, Strong durability, dust-proof, Protect the guide rail and ball screw. | |
| Base casting | 1 | HT300 | Good stability, excellent wear-ability | |
| Automatic lubricating machine | 3 | Domestic | Electronic-self-lubrication, Quantitative oil supply to the each part | |
| Oil line | 3 | Domestic | Copper tube | |
| Bearing | JAPAN NACHI | World famous brand, High accuracy, High quality | ||
| Electrical appliances | CNC system | 1 | Japan FANUC | Top brand of CNC |
| Servo motor | 3 | Japan FANUC | Top brand of CNC | |
| High precision rotary table | 1 | Taiwan Central Star | Taiwan famous brand, High accuracy | |
| Spindle motor | 2 | CTB/MK | Multitronic, Meet the requirements of different processing speed | |
| AC contactor | Schneider | Famous brand, steady property | ||
| Relay | Schneider |
Duplex cnc milling machine ,made in china,gained 38 patent certifications
12 years experience, 3years guarantee.
high efficiency, high accuracy , high quality.
GooDa CNC series milling machine are your best choice!
Contact me:
International technician,sales& Service:
Phone No.:+86 13686675212
Tel: +86-0769-89760601
Fax: +86-0769-81502791
Dongguan GooDa Machinery Manufacturing Co.,Ltd
Address: No.137, F Building Kairuifeng Industial Park, Changdong RD,Banshi Village,Changping Town, Dongguang City, GD, China
Website: http://goodacnc.en.made-in-china.com
