Ye5 3-Phase Motor High-Efficiency Water Pump

Product Description

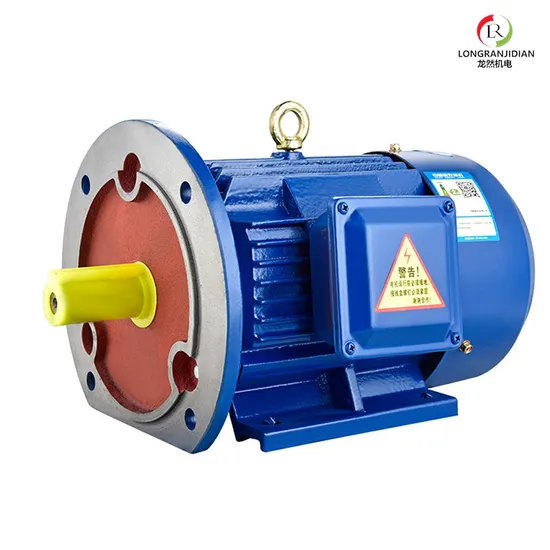

Product Description Product Description Introducing the YE4 Three Phase AC Asynchronous Squirrel Cage Induction Electric Motor by Longran Electromechanical (Zhejiang) Co., Ltd.
Features: Latest design in entirety Made of selected quality materials Conforms to the IEC standard Good performance, safety, and reliable operation Nice appearance Convenient maintenance Low noise and little vibration Lightweight and simple construction Benefits: Suitable for general drive applications Ensures efficient operation Promotes safety and reliability Enhances aesthetics with a nice appearance Easy to maintain Provides quiet operation with minimal vibration Offers a lightweight and simple design for easy installation Experience the superior quality and performance of the YE4 Three Phase AC Asynchronous Squirrel Cage Induction Electric Motor for your industrial needs.

Frame Size:			80-355
Rated Voltage:			220/440V, 220/380V, 380/660V, 415V or request
Rated Frequency:			50HZ,60HZ
Rated Power:			0.75~355kW
Insulation Class:			F
Altitude:			≤1000m
Relative Humidity:			≤90%
Protection Class:			IP55
Cooling Method:			IC411
Ambient Temperature:			-15°-+40°C
Duty:			S1
Mounting:			B3,B5,B35,V1
Altitude			not exceeding 1000m
Ambient temperature			varies with seasons,but no more than 40 °C
Place of origin			Zhejiang, China(mainland)

Type	Amps	Watts(HP)	rmp	Eff.%	Cos.fi	Tsn/In	Isn/In	Tmax/Tn
YE3-80M1-2	1.7	1.1	2880	80.7	0.82	2.3	7	2.3
YE3-80M2-2	2.4	1.5	2880	82.7	0.83	2.2	7.3	2.3
YE3-90S-2	3.2	2	2895	84.2	0.84	2.2	7.6	2.3
YE3-90L-2	4.6	3	2895	85.9	0.85	2.2	7.6	2.3
YE3-100L-2	6	4	2995	87.1	0.87	2.2	7.8	2.3
YE3-112M-2	7.8	5.5	2905	88.1	0.88	2.2	8.3	2.3
YE3-132S1-2	10.6	7.5	2930	89.2	0.88	2	8.3	2.3
YE3-132S2-2	14.4	10	2930	90.1	0.88	2	7.9	2.3
YE3-160M1-2	20.6	15	2945	91.2	0.89	2	8.1	2.3
YE3-160M2-2	27.9	20	2945	91.9	0.89	2	8.1	2.3
YE3-160L-2	34.2	25	2945	92.4	0.89	2	8.2	2.3
YE3-180M-2	40.5	30	2960	92.7	0.89	2	8.2	2.3
YE3-200L1-2	54.9	40	2955	93.3	0.89	2	7.6	2.3
YE3-200L2-2	67.4	50	2955	93.7	0.89	2	7.6	2.3
YE3-225M-2	80.8	60	2965	94	0.9	2	7.7	2.3
YE3-250M-2	98.5	75	2970	94.3	0.9	2	7.7	2.3
YE3-280S-2	133.7	100	2975	94.7	0.8	1.8	7.1	2.3
YE3-280M-2	159.9	120	2975	95	0.9	1.8	7.1	2.3

Company Profile Longran Electromechanical (Zhejiang) Co., Ltd. specializes in the production of various AC and DC motors. The main products are YE5 series high-efficiency three-phase asynchronous motors, YE4 series high-efficiency three-phase asynchronous motors, YL, ML series double-value capacitor motors, YC series capacitor starter motors, YY, MY series capacitor running motors, JY series motors, YS, MS series small power motors.JY, JW, JZ series, YEJ electromagnetic brake series, YVP, Y2VP, MLVP frequency conversion speed regulation series, DC brushless series, DC high pressure cleaning series, vehicle motor series, etc.The company has a strong technical force and has hired many senior engineers and a group of high-quality technical personnel.Modern equipment, high-tech management, and advanced testing capabilities are the guarantee of product quality. Quality creates excellence, and service embodies extraordinary. Joining hands with Longran to win the future is the solid concept of Longran.In line with the tenet of "seeking development with science and technology, surviving with quality", we are meticulous and keep improving" has always been our faithful commitment to serving customers. Our products sell well all over the country and are exported to Europe, South America, the Middle East and Southeast Asia. People from all walks of life are welcome. Letters from people to discuss business.
more products
Click on the link to see what you need
Longran's main products:CE certificate/New National Standard GB/T28575-2012 1 Secondary Energy Efficiency/IP55:* YE4 Super High Eficiency Secondary Energy Efficiency Motor;* YE3 Super High Efficiency Energy Saving Series Three -phase Asynchronous Motor;* YE3 Super High Efficiency Energy Saving Aluminum Shell Motor;
* YEJ2 series electromagnetic brake three- phase asynchronous motor;* YBX3 series flameproof three- phase asynchronous motor;
* Riello Combustaion Engine Specific Motor;
*ZFY series special motor combustion engine
*DC High-Votage Cleaning Machine
*LRYBDC Series Flameproof Electric Motor for Industrial Use with High Efficiency
*LR Series Waterproof Motor for Underwater Use with IP68 Protection Rating
* YVP2 Frequency conversion series three phase asynchronous motor
*YC Series heavy-duty single phase capacitions start induction motor
*YL SEries single phase dual capacitor induction motor
*MY ML Series aluminum sell single phase motor
*MS CDL Series high effciency three-phase asynchrorous motor* YD2 series two-speed multi-speed three phase asynchronous motor;* YVFEJ2 series variable frequency brake three-phase asynchronous motor,* YDEJ series Multi-speed electromagnetic brake three. phase asynchronous motor, oil pump motor,* special motor for stone machinery and equipment, custom-made motors with special specifications for powerrequirements, and motors with different frequencies and different pressures.* The protection grades include IP55, IP66, etc. and various special motors derived from them.
Certifications
Our Advantages
FAQ 1,Q: Can you make as per customer drawing?
A: Yes, we offer customized service for customers accordingly. We can use customer's nameplate for the electric motors.
2. Q: What are your terms of payment?
A: 30% deposit before production, balance T/T before delivery.
3. Q: Are you a trading company or manufacturer?
A: We are a manufacturer with advanced equipment and experienced workers.
4. Q: What's your production capacity?
A: 4000-5000 PCS/MONTH.
5. Q: Is a free sample available?
A: Yes, we can supply a free sample if the customer agrees to pay for the courier cost.
6. Q: Do you have any certificates?
A: Yes, we have CE certificate and TUV certificate report.
