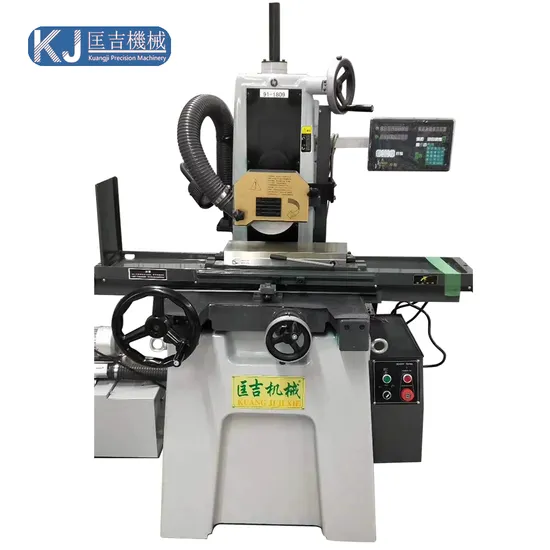

High Precision Surface Grinding Machine Psgs-618m Mini Manual Flat Surface Grinder Machine
| US$4,620.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PSGS-618M
Type
Surface Grinding Machine
Processing Object
Cam
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Flat
Precision
High Precision
Certification
CE
Condition
New
Transport Package
Wooden Case
Specification
1800*1200*1995
Trademark
Kuangji
Origin
Shanghai
Production Capacity
300
Product Description
This machine tool is mainly used to grind steel, cast iron and non-ferrous metals and other materials around the grinding wheel. According to the material and shape of the workpiece, different clamping and positioning methods can be used. General plane, can be used electromagnetic sucker or directly fastened to the work table for grinding; Plane, right Angle, arbitrary Angle, cylindrical end face, etc., can be grinding on the fixture (fixture customer self-made).| Specification class | PSGS-618M | ||
| ability | Table area | 460×150mm | |
| Maximum left and right movement | 475mm | ||
| Maximum amount of movement before and after | 185mm | ||
| Maximum distance from table to spindle center | 380mm | ||
| Maximum weight of table | 120kg | ||
| workbench | Table T-slot | 14mm×1 | |
speed of table | / | ||
| Front and rear hand wheel feed | 1 frame | 0.01mm | |
| 1 round | 3mm | ||
| Automatic feed front and rear | / | ||
| Dart back and forth | 50HZ | / | |
| 60HZ | / | ||
| grinding wheel | Grinding wheel size | φ180mm×6~20×φ31.75mm | |
| speed of mainshaft | 50HZ | 2850rpm | |
| 60HZ | 3360rpm | ||
| up-down structure | Upper and lower hand wheel feed | 1 frame | 0.005 mm |
| 1 round | 1mm | ||
| Automatic feed rate | / | ||
| Rapid up and down movement | / | ||
motor | spindle motor | 2HP | |
| Up and down drive motor | / | ||
| hydraulic motor | / | ||
| Flush motor | 1/8HP | ||
| Vacuum motor | 3/4HP | ||
size | Machine height | 1995mm | |
| occupied area | 1800mm×1200 mm | ||
| net weight | 700kg | ||
| rough weight | 850kg | ||
