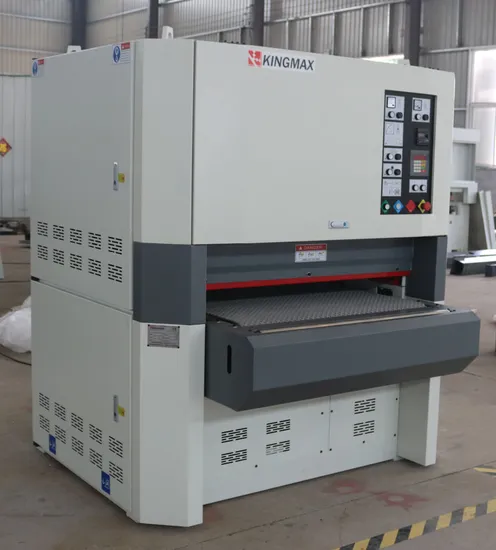

R-R1300 Wide Belt Sanding Machine Sander for Plywood

Product Description

Product Description
The beam seats and hanging plates adopt precision casting with good stability and low noise. Using multiple pressing rollers structure and it makes the feeding work more smoothly, avoid skidding. The front pressure roller adopts a backstop device to prevent the board from rebounding, ensure the safety of the operators. The combination of internal bearing, belt pulley and roller ensures coaxiality to reduce vibration and improves sanding precision. Lifting of sanding roller uses eccentric shaft control, it has higher accuracy and convenient to adjust. The first unit adopts Ø270mm large diameter eccentric spiral steel calibrating roller, the second unit adopts Ø270mm large diameter eccentric fine spiral rubber calibrating roller, the third unit adopts Ø210mm fine calibrating roller and combinated polishing pad. Sanding belt swing uses air pressure control, not affected by dust and power interruption, avoid the sanding belt slipping. With Germany Pepperl+Fuchs photoelectric control belt swing. With frequency conversion helical gear reducer, which runs smoothly, has low noise and durable. Choose SIEMENS, Omron Electric, Bocsh Rexroth frequency converter, Airtac valves are steady and durable in working. With worm gear lifting motor , lifting smoothly. Powerful and accurate. Detailed Photos

Anti-rust treatment of sanding rollers.
Frequency conversion helical gear-spiral bevel gear reducer.
Germany Rexroth Frequency Converter.
Germany Siemens Breaker & AC contactor.
Japanese Omron Time Relay.
Germany PEPPERL+FUCHS photoelectric sensor.
Japanese Omron limit switch & Taiwan Airtac cylinder
Taiwan Airtac valves & pressure controller.

Product Parameters

Technical parameters:

Model	KR-R-RP1300	KR-R-R1300
Max. Sanding width	1300mm	1300mm
Min. Working length	530mm	360mm
Sanding thickness	2-110mm	2-110mm
Feeding speed	5-30m/min	5-30m/min
Total power	94.12kw	102.12kw
Abrasive belt size	1330*2200mm	1330*2200mm
Air pressure	0.6Mpa	0.6Mpa
Air consumption	12 m³/h	12 m³/h
Volume of dust collection	13700 m³/h	13700 m³/h
Overall size	2040x2850x2150mm	2040x2870x2150mm
Net weight	5850kgs	5850kgs

Packaging & Shipping
After passed the quality inspection, the machine will be wiped with biodegradable anti-rust oil to protect from the humid sea air. Then use PE film packaging.
We also can use a steel pallet to protect the machine in the container.
FAQ
1) Q: What's the MOQ?
A: One set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can.
3) Q: What's the payment terms?
A: T/T 30% as deposit and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade compnay. KINGMARKS is our brand.
5) Q: How long is the warranty period?
A: One year except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
