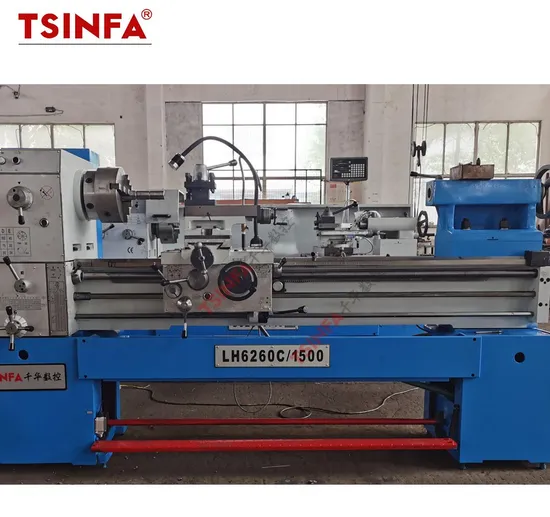

Lh6260c High Quality Chuck 4 Station Tool Post Turning Machine Metal Manual Lathe CE

Product Description

Product Description
LH6260C series manual engine lathe (gap bed lathe machine), as a versatile horizontal lathe machine, is widely used in the batch processing of variety of shaft and disk part, like the turning inner and outer cylindrical surface, conical surface and other rotating surfaces,turning various metric, imperial, modulus and pitch thread, drilling and pulling oil groove, etc. One of the most important industrial machine tools.Main Feature:*The surface guide of the bedways is quenched by supersonic frequency and grinded precisely.
*The headstock gears are quenched and grinded to ensure gear strength to reduce noise.
*Integrated stand keep the machine high work rigidity
*Variable speed model for optional
Product Parameters

SPECIFICATIONS	Units	LH6240C	LH6250C	LH6260C
Max.swing over bed	mm	400	500	600
Max.swing over cross slide	mm	240	325	360
Max.swing over gap	mm	530	630	730
Effective length of gap	mm	260
Center Distance	mm	1000/1500/2000/3000
Bed Width	mm	330
Spindle hole	mm	80
Spindle nose	mm	ISO-D8
Spindle taper	mm	Metric 85
Spindle speed(Number)	r.p.m	(15steps)24-1600
Max. travel of top slide	mm	130
Max. travel of cross slide	mm	300
Max.size of toolshank	mm2	25*25mm2
Longitudinal feeds range	/	66kinds 0.072-4.038mm/rev
Cross feeds range	/	66kinds 0.036-2.019mm/r
Metric threads range	/	66kinds 0.5-28mm
Inch threads range	/	66kinds 1-56inch
Moudle threads range	/	33kinds 0.5-3.5mπ
Dia.of tailstock sleeve	mm	65
Taper of tailstock sleeve	mm	MT5
Max. travel of tailstock	mm	135
Main drive motor	Kw	5.5
Coolant pump motor	W	90W
L*W*H(1000mm)	mm	2430*1130*1800	2430*1130*1800	2430*1130*1800
L*W*H(1500mm)	mm	2930*1130*1800	2930*1130*1800	2930*1130*1800
L*W*H(2000mm)	mm	3430*1130*1800	3430*1130*1800	3430*1130*1800
N.W/G.W(1000mm)	kg	1550/1750	1650/1850	1750/1950
L*W*H(1500mm)	kg	1750/2050	1850/2150	1850/2100
L*W*H(2000mm)	kg	1850/2200	1950/2300	2150/2500

Detailed Photos
Certifications
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers. Packaging & Shipping
FAQ
Q1:How can l choose the most suitable machines ?Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there? Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .06: What's the MoQ?A: 1 set .(Only some low cost machines will be more than 1 set )We want to know:1.We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!2.lf need ClF Price, please kindly tell us the port of destination.
