Manufactures Fabrication CNC Hydraulic Punching Plate High-Speed Drilling Machine High Voltage Substation Plate Punching Machine

Product Description

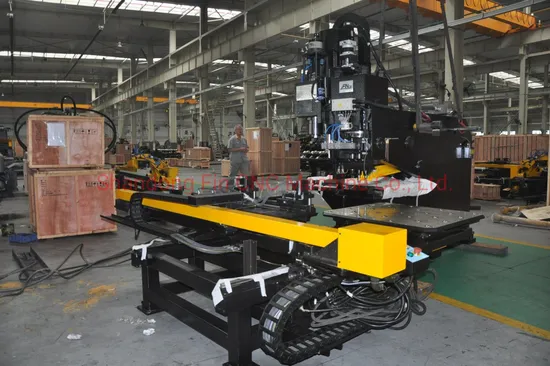

Manufactures Fabrication CNC Hydraulic Punching Plate High-Speed Drilling Machine 1500mm*775mm*25mm
Product Description:
PPHD123 Hydraulic Punching& high-speed Drilling Machine
Applicable Industry:
Ideal machine for join plates of steel tower and construction
Main Technical Specifications:

Parameter name	Unit	Value
Thickness Workpiece Size	mm	5~25 mm
Max. size of workpiece	mm	1500×800mm
Punch force	KN	1200KN
Max size diameter	mm	¢25.5mm
Punching diameter &thickness	mm	σb≤580MPa:¢26×25 σb≤610MPa:¢26×20
Minimum hole margin	mm	25mm
Spindle Drilling taper		BT50
Drilling diameter	mm	φ13-φ40(Carbide drill)
Max. speed of spindle:	r/min	3000r/min
Clamp cylinder Number	piece	2
Quantity of CNC axes	piece	3
Stroke of X ,Y,Z axis-speed	m/min	0--18m/min
Motor power of oil pump	KW	22 KW
Motor power of spindle	KW	15KW
AC servo motor power of X axis	KW	2KW
AC servo motor power of Y axis	KW	2KW
Work-pressure of high-lift pump	MPa	24MPa
Work-pressure of low-lift pump	MPa	6MPa
Method of cooling		Water
Method of Tools cooling		trace Oil fog cooling system
Total power	KW	26
Overall dimensions (L×W×H)	mm	About 3600×3200×2300mm
Net weight of the machine	Kg	About 8200Kg

List of the Key Outsourced Components:

No.	Name	Specification	Quantity	Brand	Country
1	Linear guide	MSA30	4	PMI	Taiwan China
2	Oil pump	T6CCW-017-006	1	Denison	America
3	Solenoid relief valve	AGAM-10/21/350/210	1	Atos	Italy
4	Solenoid unloading valve	AGIU-20/10/100	1	Atos/Yuken	Italy/Taiwan China
5	SolenoidValve(Dg6)	SDHE-1631/2	1	Atos/Yuken	Italy/Taiwan China
6	Solenoid Valve(Dg6)	SDHE-0714	1	Atos/Yuken	Italy/Taiwan China
7	Solenoid Valve(Dg6)	SDHE-0713	1	Atos/Yuken	Italy/Taiwan China
8	One-way throttle valve	HQ-012	1	Atos	Italy
9	Throttle Valve of P	TVP-02	1	JUSTMARK	Taiwan China
10	One-way valve of P	CVP-02-B	1	JUSTMARK	Taiwan China
11	Check valve	PCVA-02-B	1	JUSTMARK	Taiwan China
12	Air valve	SY5120-5DD-01	3	SMC	Japan
13	Confluence plate	SS5Y5-20-03	1	SMC	Japan
14	Cylinder	CP95SDB40-100	3	SMC	Japan
15	Filter-Regulator-Lubricator combined units	G1/4	1	SMC	Japan
16	AC servo motor	2kW	2	S chneider	France
17	Program Controller	FX1N-60MT	1set	Mitsubishi	Japan
18	Transducer	MMX440(5.5kW)	1	Siemens	Germany

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
Product Feature:

There are three die-stations in the machine, which can punch holes with three different diameters by using three different punches.

The whole process is realized automatically.once the machining dimensions of a workpiece are put into the computer by an operator, which can be called up repeatedly.
The workpiece is clamped by the two strong and precise hydraulic clamps which can be moved and fixed rapidly.
Maximum punching force of main cylinder is 100 tons. Workpiece with maximum weight of 226kg can be processed by the machine. The two CNC axes are driven by AC servo motors via ballscrews, which can move on the rolling guides.
Speed and feeding of the drilling spindle can be stepless adjusted. When the drill touches the workpiece,itcan automatically change its speed into working one. After the hole is drilled through, the drill returns automatically.
Working environment:
Working temperature: 0ºC ~ 40ºC
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
Frequency: 50 Hz
Company Introduction:
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Our Service
FAQ
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
