Horizontal Deep Hole Internal Grinder for Grinding Max. Depth 100cm

Product Description

Main Features 1. The machine is a two axis two linkage CNC deep hole internal grinder, which can grind the internal round hole, step hole, internal cone hole, internal round end face and external round end face of the work piece. It has the functions of automatic feed, automatic rough grinding, fine grinding, automatic withdrawal, automatic dressing of grinding wheel, automatic compensation, etc.2.The machine bed is made of wear-resistant cast iron, fixed by work piece spindle box, reciprocated by worktable and fed by grinding wheel rack.3.It adopts programmable numerical control system, automatically carries out grinding wheel correction, compensation, automatic feeding during work piece grinding, automatically carries out intermediate correction, correction compensation, grinding compensation, fine grinding delay, automatic tool withdrawal return and other actions.

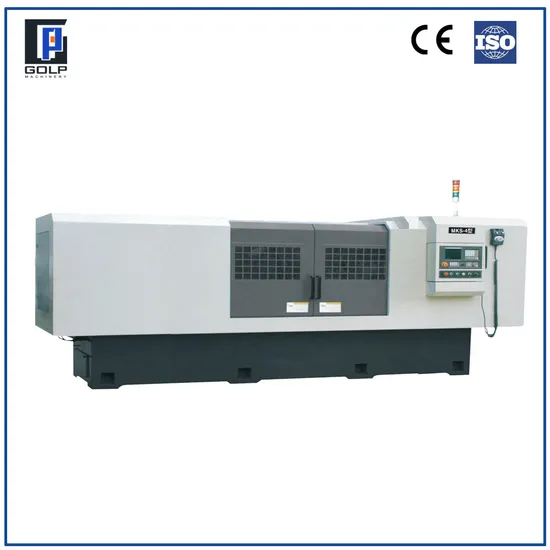

CNC Deep hole internal grinding machine tool
S.N	Name	Main technical parameter
1	Weight of machine tool	7800( 8500) KG
2	Outline dimension of machine tool ( mm )	4500 (5200) x 1800 x2800
3	Rated power	18.85(19.85)
Other parameter
4	Motor power of work piece ( KW)	4
5	Motor power of grinding wheel ( KW )	4(5)
6	Servo motor power of X axis ( NM)	11
7	Repeat positioning accuracy of X axis ( mm )	0.003
8	Servo motor power of Z axis ( NM)	3(4)
9	Reciprocating accuracy of Z axis ( mm)	0.004( 0.005)
10	Maximum moving speed of worktable ( m/min )	10
11	Maximum running speed of feed mechanism ( m/min )	5
12	Rotation speed of work piece ( r/min )	50-500 stepless speed regulation
13	Rotation speed of grinding wheel ( r/min )	2000-10000 stepless speed regulation
14	Max. Stroke of worktable ( mm )	800( 1200 )
15	Max. Rotation angle of work piece	+5( degree ),-2( degree )
16	Max. swing diameter of work piece ( mm )	700
17	Max.Loading weight ( kg)	300( without central rest ] 1000( with central rest )
18	Feed stroke of grinding wheel axis ( mm )	250
Processing range
19	Grinding internal diameter scope ( mm )	50-400
20	Max. Grinding depth ( mm)	750( 1000 )
Processing accuracy
21	Roundness ( um)	0.005
22	Cylindricity ( mm)	0.002/200
23	Roughness of surface ( um )	Ra0.4
