Basic Info.
Processing Object
Grain Flour for 1 Ton/Hr Dry Fish Food Machine
Processing Technics
Extrusion for 1 Ton/Hr Dry Fish Food Machine
Screen Mesh
Depands on You
Grinding Equipment Type
The Matetial Is Flour
Pellet Mill Type
Extruder for 1 Ton/Hr Dry Fish Food Machine
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Both Are Ok for 1 Ton/Hr Dry Fish Food Machine
Applicable Materials Shape
Common Is Powder, Sometimes, Other Material
Machine Material
Stainless Steel
Product Material
Grain Powder or Others
Automatic
Fully Automatic for 1 Ton/Hr Dry Fish Food Machine
Need Worker
1-2 Is Enough
Capacity
150kg Per Hour to 2.5 Ton Per Hour
Extruder
Twin Screw Extruder
Certification
CE, ISO9001
Size of The Machine
10m X2m X 2.5 M
Transport Package
Wooden Case for 1 Ton/Hr Dry Fish Food Machine
Specification
CE, ISO9001
Production Capacity
150kg Per Hour to 2.5 Ton Per Hour
Packaging & Delivery
Package Size
1800.00cm * 120.00cm * 200.00cm
Package Gross Weight
2500.000kg
Product Description

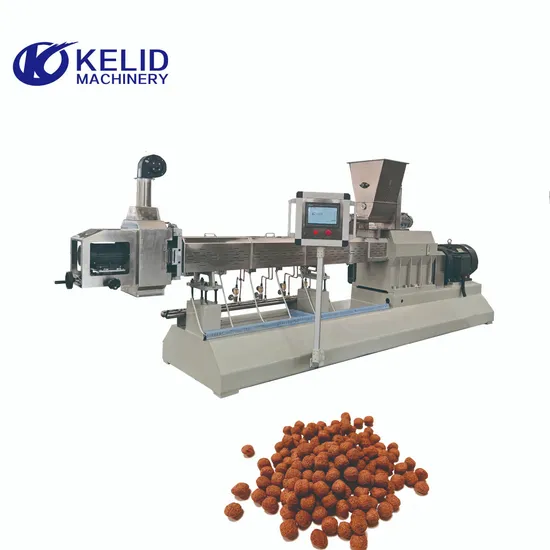

Floating Fish Food Making Machine
Description
Fish feed pellet machine can be used to producing floating fish feed and sinking fish feed. The floating 1 ton/hr dry fish food machine can make kinds of feed, such as feed fish, catfish, shrimps, crab, etc. the fish pellet made by the machine can float on water more than 24 hours. Gelatinization degree can reach 90%, enhance the output of fodders, it is suitable for making floating feed, pet feed, fish fodder. The diameter of particle is Φ0.6-16mm. Promising fodder output evenly and continuously.
a. Raw materials adopts wheat flour, rice flour, corn flour, soybean flour, fish meal, bone meal etc as raw materials.
b. Products this line can be used to produce fish pellets, the pellets size can be from 1.0mm to 12.0mm by adjusting the dies from extruder; meanwhile it can produce dog feed, cat feed.
c. Capacity 150kg/h, 240kg/h, 500kg/h, 1ton/h, 2ton/h, 3tons
d. Flow chart Mixing system---Extrusion system----Drying system----Flavoring system---Packing system
e. Voltage in China Three phases; 380V/50Hz, Single phase; 220V/50Hz, we can make it according to customers' Local voltage according to different countries.
f. Machines Materials
Machine Material: Stainless Steel #304, thickness:1.2mm
Main Motor: Siemens China brand
Main Electric elements: Siemens or CHNT brand
Inverter: Delta brand
g. Technical Parameters
| Model | Installed power | Real power | Output | Dimension |
| KLD65 | 81.5kw | 53kw | 100-150kg/h | 21000x1200x2200mm |
| KLD70 | 115kw | 76kw | 200-240kg/h | 23000x1500x2200mm |
| KLD85 | 181kw | 117kw | 400-500kg/h | 28000x3500x4300mm |
| KLD90 | 135kw | 100kw | 1000kg/h | 30000x3500x4300mm |
| KLD115 | 165kw | 115kw | 2000kg/h | 30000x3500x4300mm |
Package and shipment.
Package: wooden case for 1 ton/hr dry fish food machine
Shipment: By sea for 1 ton/hr dry fish food machine
