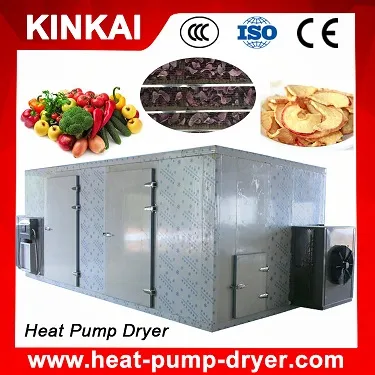

Professional Manufacture Vegetable Fruit Agricultural Product Heat Pump Dryer

Product Description

KINKAI Heat Pump Dryer Introduction
KINKAI third generation heat pump dryer is a device that transfers heat from a colder area (ambient temperature) to a hotter area (drying chamber) by using mechanical energy, as in a refrigerator, circulating hot-air assures uniform drying and high efficiency.

Model: JK03RD, JK06RD, JK10RD
Power Supply: 220V/1PH/50HZ or 380V/3PH/50HZ
Type: 75% air source + 25% electric power
Max. Temp: 75ºC
Working Temp: -10~45ºC
Functions: Heating / Cooling / Dehumidify
Dryer Type: Batch Type
Use for :
Dry vegetables like tomato, potato, garlic, ginger, radish, lettuce, pumpkin, carrots, spinach, cassava etc
Dry fruits like apple, lemon, mango slices, dried plum, dried pineapple, apricot, pear, etc
Dry meat: Sausage, beef, duck, ham etc
Others it can dry noodle/ wooden /stick incense/herbs /flowers etc.

Functions:
Heating drying max temp 75C
Cooling drying Min temp 8C
Heating +dehumidify drying
KINKAI Heat Pump Dryer Working Principle
1, Dryer evaporator of refrigerant absorb the air from outside
2, then compressor works that make the air temperature rise
3, heat exchanger change the hot air into drying chamber
4, final vegetables/fruits/seafood/herbs will be dried by the hot air circulating in drying chamber

Features of KINKAI Heat Pump Dryer
1, Adopt cycle drying with second waste heat recovery patent technology
2, Energy saving 60~75% than traditional dryer
3, The adjustable temperature: 10-75 degrees
4, Touch screen control operation
5,Uniform drying
Horizontal Blowing 360ºC, by using the forced ventilation function, there are partition sheet and fan motors inside the drying chamber to make sure hot air cycle, so the raw materials can be dried evenly
6, Good drying quality.
During drying, the material does not craze, does not distortions, non-discoloring, never degenerate, non-oxidize, drying completely, with good rehydration, keep nutrient content
7. Running stable, easy operation and low maintenance requirements
Automatic intelligent control and demands no human duty after setting.
8. Big capacity ranges, from 200kg/batch small capacity single unit to 3000kg/batch combined multiple units to fulfill all your processing need;
Technical Parameters

Single Dryer + Drying Chamber
Model	Unit	JK03RD	JK06RD	JK12RD
Power Input	KW	4.8	8.5	15
Power Supply	V/PH/HZ	380V/3PH, 50/60HZ	380V/3PH, 50/60HZ
		220V/1PH, 50/60HZ
Rated Current	A	9.6A(380V), 22A(220V)	17	30
Heating Capacity	KW	10.5	21	42
Cooling Capacity	KW	7.8	18	32
Dehumidify	L/H	12	25	50
Max. Temperature	ºC	≤75	≤75	≤75
Working Condition	ºC	0-43	0-43	0-43
Electric Shock Protection Grade		I	I	I
Max. Exhause Pressure	Mpa	3	3	3
Noise	dB(A)	75	75	75
Power Consumption/ H	KWH	4.8	8.5	15
Electric Heater	KW	3	6	12
Blowing Type	/	Horizontal Blowing 360ºC
Dimension Of Dryer	MM	1675x860x1280	1760x1060x1280	2120x1360x1590
Weight	KG	295	385	540

Double Dryers + Drying Chamber
Model	Unit	JK03RD (x2)	JK06RD (x2)	JK12RD (x2)
Power Input	KW	9.6	17	30
Power Supply	V/PH/HZ	380V/3PH, 50/60HZ	380V/3PH, 50/60HZ
		220V/1PH, 50/60HZ
Rated Current	A	19.2A(380V), 44A(220V)	34	60
Heating Capacity	KW	21	42	84
Cooling Capacity	KW	15.6	36	64
Dehumidify	L/H	24	50	100
Max. Temperature	ºC	≤75	≤75	≤75
Working Condition	ºC	0-43	0-43	0-43
Electric Shock Protection Grade		I	I	I
Max. Exhause Pressure	Mpa	3	3	3
Noise	dB(A)	≤75	≤75	≤75
Power Consumption/ H	KWH	9.6	17	30
Electric Heater	KW	6	12	24
Blowing Type	/	Horizontal Blowing 360ºC
Dimension Of Dryer	MM	1675x860x1280	1760x1060x1280	2120x1360x1590
Weight	KG	295x2	385x2	540x2

Recommend Dryer+Drying Chamber Sizes

Item	Description	Product Capacity	Drying Chamber size
1	One unit JK03RD dryer + drying chamber	300Kg / batch	4000*2000*2200mm
2	One unit JK06RD dryer + drying chamber	600Kg / batch	6000*2800*2200mm
3	One unit JK12RD dryer + drying chamber	1000Kg / batch	6000*3000*2200mm
4	Two units JK03RD dryers + drying chamber	1200Kg / batch	7000*2200*2200mm
5	Two units JK06RD dryers + drying chamber	1500Kg / batch	10000*2800*2200mm
6	Two units JK12RD dryers + drying chamber	2500Kg / batch	10000*3000*2200mm

Warm prompt: We can make any drying chamber sizes as your required.
Our Service
A. Technical service
1, We calculate the capacity and recommend the best models.
2, We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3, We supply the spare parts and technical support in & after the warranty time.
4, We supply the training course to your workers at our factory if you need. B. After-sales service
1, Technical support for your installation, operation and maintenance.
2, One year's warranty, and you can pay for extended warranty.
3, Spare parts and technical support at most economic prices after the warranty.
