HDPE Steel Wire Mesh Reinforced Composite Pipe Srpe/Srtp Pipe Application for Mine/Gas/Water Supply

Product Description

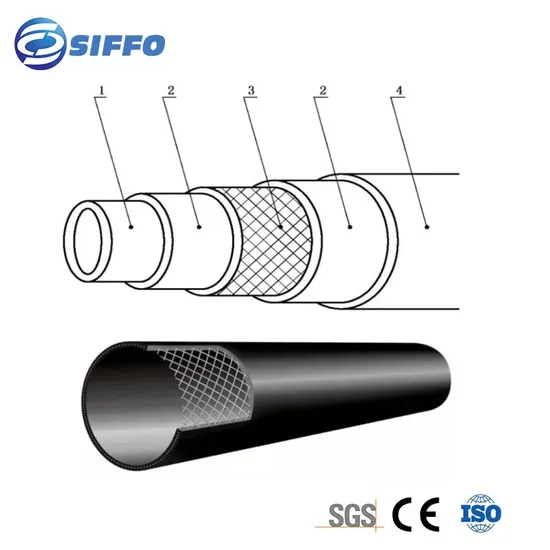

Steel wire mesh reinforced HDPE composite pipe
Steel wire mesh reinforced HDPE composite pipes are a new type of improved steel skeleton plastic composite pipe. High performance HDPE modified adhesive bonding resin is used to connect steel wire skeleton with the inner and outer HDPE layers closely to ensure its higher pressure resistance and excellent flexibility.
Main features:
1. Corrosion resistance to wide range of corrosive media.
2. Non-toxic, safe and hygiene, ideal for use in environment friendly water supply-drainage pipeline and gas pipeline.
3. Good sealing. Electric hot melting is used for jointing the pipes and pipe fittings are fused together, forming a no-leaking joint.
4. High resistance to underground movement and loading at pipe end. Stress releasing characteristics of polyethylene can effectively release the internal stress of the pipe through deformation and thus the pipe has sufficient resistance to pipe end stress and no expensive way of anchoring is necessary for pipe laying.
5. Good resistance to rapid crack propagation (RCP) and slow crack growing (SCG).
6. Good hydraulic property. Because the pipe's inner wall is smooth, resistance to medium flow is low and capacity of delivery is higher than conventional pipe by 30%.
7. Good toughness and possible seismic resistance
8. Good dimensional stability and impact resistance.
9. Easiness in laying. If buried, the pipe can withstand abrupt impact load caused by land subsidence, land sliding, vehicle, etc. with no need to have concrete foundation, and thus pipe installation is quick construction cost is lessened.
10. Long service life: Service life for safety use is 50 years.
11. Wide application range. The pipe can be widely used in municipal utilities (gas delivery and distribution pipelines, buried water supply-drainage pipeline, pharmacy, metallurgy, mining, etc.as well as in agricultural irrigation system).
Specification:

Diameter(mm)	Wall thickness(mm)
	0.8Mpa	1.0Mpa	1.25Mpa	1.6Mpa	2.0Mpa	2.5Mpa	3.0Mpa	3.5Mpa
50	-	4.5	4.5	4.5	5.0	5.5	5.5	5.5
63	-	4.5	4.5	4.5	5.0	5.5	5.5	5.5
75	-	5.0	5.0	5.0	5.0	5.5	6.0	6.0
90	-	5.5	5.5	5.5	5.5	5.5	6.0	6.0
110	-	5.5	5.5	7.0	7.0	7.5	8.5	8.5
125	-	5.5	5.5	7.5	8.0	8.5	9.5	9.5
140	-	5.5	5.5	8.0	8.5	9.0	9.5	9.5
160	-	6.0	6.0	9.0	9.5	10.0	10.5	10.5
200	-	6.0	6.0	9.5	10.5	11.0	12.0	12.0
225	-	8.0	8.0	10.0	10.5	11.0	12.0	12.0
250	8.0	10.5	10.5	12	12	12.5	14.0	14.0
280	9.5	11.0	11.0	12.0	13.0	15.0	15.0	17.0
315	9.5	11.5	11.5	13.0	13.0	15.0	15.0	18.0
355	10.0	12.0	12.0	14.0	14.0	17.0	17.0	19.0
400	10.5	12.5	12.5	15.0	16.0	17.0	17.0	-
450	11.5	13.5	13.5	16.0	18.0	18.0	-	-
500	12.5	15.5	15.5	18.0	19.0	22.0	-	-
630	20.0	23.0	23.0	26.0	26.0	-	-	-
710	23.0	26.0	26.0	30.0	-	-	-	-
800	27.0	30.0	30.0	34.0	-	-	-	-
900	29.0	33.5	33.5	38.0	-	-	-	-
1000	34.0	37.0	-	-	-	-	-	-

Application:
Municipal engineering: urban building water supply, drinking water, fire water, heat network backwater, gas, natural gas transmission, highway buried drainage channels.
Oil and gas filed: oil-hearing sewage, gas filed sewage, oil and gas mixture, secondary and tertiary oil recovery and gathering and transportation process pipe.
Chemical industry: acid, alkali, salt manufacturing industry, petroleum, chemical, fertilizer, pharmaceutical, textile, printing and dyeing, rubber and plastic industries to transport corrosive gas, liquid, solid powder process pipe and discharge pipe.
Electrical engineering: process water, backwater, water supply, fire water, dust removal, waste residue and other pipelines.
Metallurgical mines: used for conveying corrosive media, pulp, tailings, ventilation pipes and process pipes in the smelting of non-ferrous metals.
Sea transportation: desalination plants, seaside power plants, sea transportation in harbor cities.
Shipbuilding: ship sewage pipe, drain pipe, ballast pipe, ventilation pipe and so on.
Agricultural sprinkler irrigation: deep well pipe, filter pipe, culvert conveying pipe, drainage pipe, irrigation pipe etc.
Connection:
1.Electrofusion connection
2. Flanged connection
