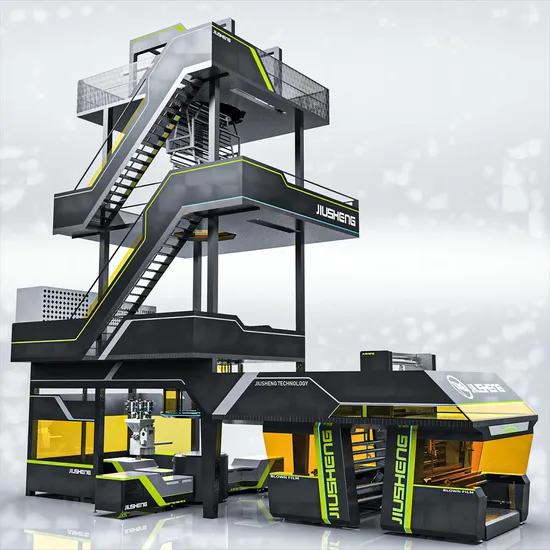

Factory Price High Production Low Waste ODM Five-Layers Film Blowing Machine

Product Description

Jiusheng recommends blown film machine
↓ ↓ ↓
main parameter

Model NO.	JS-3-2800		Automation	Automatic
Computerized	Computerized		Machine Weight	20t
Certification	patent certificate		Max. Output	680kg/h
Gear Box	30kw/37kw/30kw		Main Motor	173#200#173#
Screw Type	High Speed Screw with Force Feeding		Die Diameter	600mm
Thickness of The Film	0.02-0.2mm		Rewinder	Center Gap Winding System
Air Ring	Italy Syncro Newest Model		Automatic Counter Flow Air Ring	Optional
Automatic Flat Scan Thickness Measuring	Optional		IBC System	Within
Horizontal Traction Rotary	Within		EPC System	Within
After Service	24-Hour Serviceafter-Sales		Installation,Commissioning,Training	on-Site / Remote Video
Transport Package	Shrink Film or Wooden Case		Specification	10.7*8.4*10
Trademark	Jiusheng		Origin	China
HS Code	8477301000		Production Capacity	100sets /Year

Process Flow Diagram
Automatic ABC(IBC)3-Layers Co-extrusion Center Gap Winding System Film Blowing machine

Model	SJ-55/65/55-1400	SJ-65/65/65-1600\1800	SJ-75/75/75/-2200	SJ-75/95/75/-2400	SJ-85/85/85-2800
Width of the film	600-1200mm	800-1400\1000-1600mm	1400-2000mm	1600-2200mm	2000-2600mm
Thickness of the film	LDPE 0.02-0.2mm
Max Output	300kg/h	350kg/h\400kg/h	500\560kg/h	645kg/h	700kg/h
	According to different width, thickness of film,die size and raw material characteristics to change
Raw material	HDPE/LDPE/LLDPE/MDPE/EVA
Diameter of screw	Φ55/65/55	Φ65/65/65\Φ65/75/65	Φ75/75/75\Φ75/85/75	Φ75/95/75	Φ85/85/85
L/D ratio of screw	32:1(With force feeding)
Gear box	173# 200# 173#	200# 225# 200#	225# 250# 225#	250#315#250#	280/330/280
Main motor	30kw37kw/30kw	37kw/45kw/37kw	45kw/55kw/45kw	75kw/90kw/75kw	90/160/90
Die diameter	Φ300mm	Φ350mm\Φ400mm	Φ500mm	Φ550mm	Φ700mm

Jiusheng Product Album
Our Equipment in Factory
The Patent Certificate We Obtained
Main Product Series
1.barrier film

2.composite base film


3.protective film


4.self-adhesive film

Production Site

Spare Parts and Service


Q&A
Q1: How about after-sales service? How long is the machine warranty? A1: We guarantee 1 year after-sale service once you received our machine, you can call us or send us any questions about the machine.
Q2: How long is your delivery time? A2: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q3: How long can your machine work continuously? A3: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q4: Does your factory need agents? What are the thresholds? A4: We need agents, welcome to inquire for more details.
Q5: Where is your factory? How can I visit there? A5: We are located in Wuhan City, Hubei Province.We have convenient transportation and we are willing to show u around our factory.
