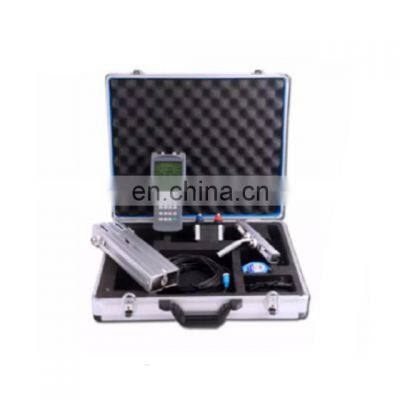

Portable Ultrasonic Clamp On Flow Meter, Flow Meter Portable Transit Time Ultrasonic Clamp-On Flow Transmitter

Product Description

Product Description
Product DescriptionFeatures of TDS-100H Hand Held Ultrasonic Flow Meter1.0.5% of linearity2.0.2% of repeatability3.Bilingual interface in chinese and English4.4 flow totalizers5.Patent balanced lower-voltage multi-pulse ultrasonic igniting6.Work properly near transverters7.100Pico-second resolution of time measurement8.built-in date totalizers9.built-in data-logger10.0.5 second totalizing periodFeatures of TDS-100P is a Portable Ultrasonic Flow Meter 1. Better than 1% accuracy 2. 0.2% of repeatability3.2x10 English letters LCD display4.Operate with clamp on transducers5.Pipe diameters from 15mm to 6000mm 6.RS485 interface7.Built-in thermal printer8.Ni-MH battery operation of over 24 h9. 220VAC or 110VAC power supplyclamp-on transit time ultrasonic flow meterFeatures of TUF2000P Portable Ultrasonic Flow meter1.Up to +/-1% High accutacy2.Non-contacting measuring3.Non-intrusive, clamp-on transducer4.DN 15mm to DN6000mm Wide measuring range5.English menu English display6.Built-in rechargeable Ni-MH rechargeable battery7.Built in thermal printerFeatures of TUF2000H Hand Held Ultrasonic Flow Meter 1.0.2% of repeatability 2. Internal data logger 3. 90~230VAC power supply 4. Better than 1% accuracy5.4x6 English letters LCD display 6. Operate with clamp on transducers 7.Ni-MH battery operation of over 12 h8.Pipe diameters from 15mm to 6000mm9.RS 232 interface or 1-channel isolated OCT outputSpecificationModel NumberTDS-100HTDS-100PTUF2000HTUF2000PHeat MeterNoNoNoCan added PT100 temperature sensor and used as Ultrasonic heat meterPrinter & SD card optionNo(can be added data logger)Choose either Printer or Sd cardNo(can be added data logger)Can be added printer & SD card the same timeDisplayLCD with backlight. 2x20 letters.LCD with backlight. 2x20 letters.4x4+2 keyboard4*16 English letters2x20 character LCD with backlight, support the language of Chinese, English and ItalianPower90~230VAC Ni-MH battery operation of over 12 h220VAC (standard) the battery can working for more than 20 hours90~230VAC Ni-MH battery operation of over 12 h220VAC (standard) the battery can working for more than 20 hoursOutputRS232CRS485RS 232RS485Environment Humidity85% RH85% RH85%RH85%RHAccuracyBetter than ±1.0 %Better than ±1.0 %Better than ±1.0 %Better than ±1.0 %Pipe SizeDN15mm~6000mmDN15mm～6000mmDN 20mm-6000mmDN 15-6000mmMeasurement PrincipleTransit-time measurement principleTransit-time measurement principleTransit-time ultrasonic flow meterTransit-time ultrasonic flow meterPipe MaterialSteel, stainless steel, cast iron, copper, cement pipe, PVC, AluminumSteel, stainless steel, cast iron, copper, cement pipe, PVC, AluminumSteel, stainless steel, cast iron, copper, cement pipe, PVC, AluminumSteel, stainless steel, cast iron, copper, cement pipe, PVC, AluminumPower ConsumptionLess than 1.5W2W-1.5 WEnvironment Temperature0-70℃If request high temperature sensor (0-160℃)welcome to consult us0-70℃If request high temperature sensor (0-160℃)welcome to consult us0-70℃If request high temperature sensor (0-160℃)welcome to consult us0-70℃If request high temperature sensor (0-160℃)welcome to consult usRepeatability0.20%0.20%0.20%0.20%Protection ClassIP65IP65IP65IP65Transducer OptionsSensor TypePipe size (mm)Pipe size (inch)TemperatureProtection classTS-2-typeDN15~100( 1/2~4" )32F~320F ( 0℃~160℃ )IP65TM-1-typeDN50~700(2~28" )TL-1-typeDN300~6000( 12~240" )HS-typeDN15~100( 1/2~4" )HM-typeDN50~700( 2~28" )Our facetoryContact Us 1. 18 Month's Warranty. 2. MOQ:1 set.3.Ready to ship out within bysea,TNT,DHL,FedEX,as soon as we receive payment. 4. We accept T/T,Western Union,PayPal & Secure Payment.DALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, ChinaWhatsapp/Wechat:+8618842866177 E-mail：commercial(at)
